Waste Residue Incineration Project in Hubei
Waste Residue Incineration Project in HubeiProject Overview:
Project Location: Hubei Yihua, China
Construction unit: Hubei Yihua Insurance Powder Factory
Product Name: Waste residue incineration
Production Capacity: 16t / h
Services: rotary kiln, two combustion chamber design, manufacture, installation and commissioning.
Project Description:

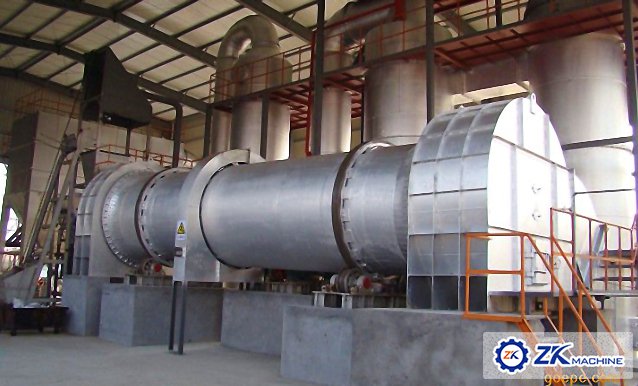

In this project, the rotary kiln is used to incinerate the waste residue. Since the waste residue generates dioxins during incineration, it is necessary to set up a secondary combustion chamber at the kiln end of the rotary kiln to eliminate dioxins in the flue gas.
Equipment Parameter:
1. Rotary kiln
Power: 380V / 50Hz / 3φ, motor energy level IE2, insulation class F, protection class IP54, explosion-proof grade dII BT.
Kiln specifications: Φ2200X18000 (mm)
Equipment slope: 3: 100
Kiln main material: Q345R
Kiln head and kiln tail seal form: fish scales plus labyrinth
Support form: two support
Transmission: single-ended two-stage drive, pinion supported by a double bearing
Operating temperature of rotary kiln: 600 ℃ ~ 700 ℃
Lining requirements: 200mm mullite brick +100 insulation layer
2. Two combustion chamber
Two burning chamber material: Q345
Two combustion chamber operating temperature: 1100 ℃
Main Equipment:
| No. | Equipment Name | Model | Qty |
| 1 | Rotary Kiln | Φ2.2×18m | 1 Set |
| 2 | Two combustion chamber | adaptation | 1 Set |
