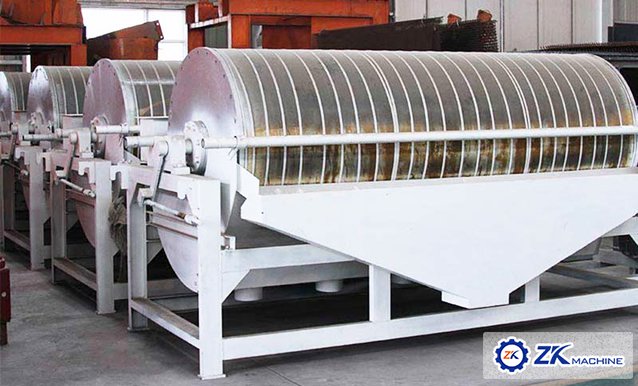

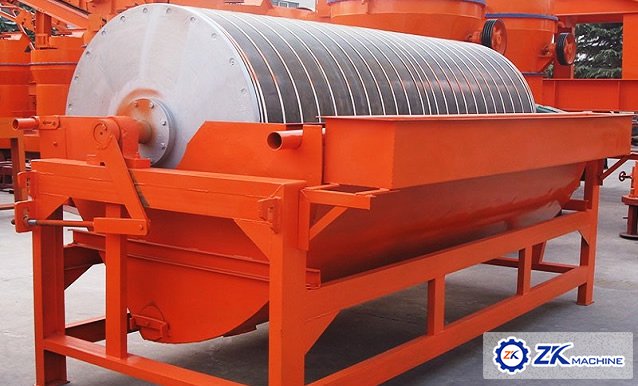

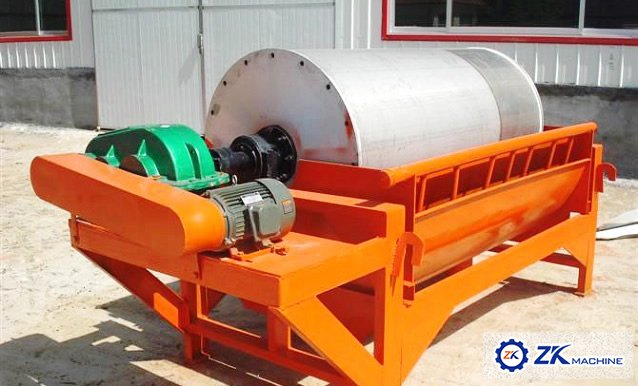

Magnetic Separator

Model: CTB6012 -- CTB1230



Shell Dia: 600 - 1500 (mm)



Shell Length: 1200 - 3000 (mm)



Capacity: 10 - 280 (t/h)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Magnetic separator is the high versatility machine, which is widely used in ore dressing, recycling, ceramic, chemical industry. The main function is remove iron from powdery material.

Magnetic separator is suitable for maaterial with particle size below 3mm, it can use wet seperation process for magnetite, pyrrhotite, calcination ore, ilmenite and other materials, but also can remove iron from coal, non-metallic minerals, building materials etc. Its magnetic system adopt high quality ferrite material or material compound with rare-earth magnet material, the magnetic strength of drum surface is 100-600mT.

The magnetic separator can separate raw materials with different magnetic rigidities. The magnetic separators are available in cyclic design with process vessel diameters smaller than 3mm. Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.

Working Principle of Magnetic Separator:

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly, the flowing direction of the raw materials is the same as the rotary direction of the magnetic drum, the iron magnetite materials are attracted to the surface of drum. This is the first separation. In the second step, the flushing water below flush the raw materials back for the second separation. This time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum. Then along with the rotation of drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fall to the ore concentrate box under gravity. Also, the flushing water above helps to flush the iron magnetite into the ore concentrate box. The weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.


Features

1. Magnetic system material is high performance & high quality Ferrite material.

2. Wide range of granularity, high separation precision, simple structure, maintain conveniently.

3. Simple structure,large process capacity, easy operation and maintenance and so on.

Parameter

Model

Shell Diameter (mm)

Shell Length
(mm)

Magnetic Strength

Revolving Speed (r/min)

Feeding Size
(mm)

Capacity
(t/h)

Power
(kw)

CTB6012

600

1200

MT>100

<35

2-0

10-20

1.5

CTB6018

600

1800

MT>100

<35

2-0

15-30

2.2

CTB7518

750

1800

MT>120

<35

2-0

20-45

2.2

CTB9018

900

1800

MT>130

<35

3-0

40-60

3

CTB9021

900

2100

MT>130

<35

3-0

45-60

3

CTB9024

900

2400

MT>130

<28

3-0

45-70

4

CTB1018

1050

1800

MT>135

<20

3-0

50-75

5.5

CTB1021

1050

2100

MT>135

<20

3-0

50-100

5.5

CTB1024

1050

2400

MT>135

<20

3-0

60-120

5.5

CTB1218

1200

1800

MT>135

<18

3-0

80-140

5.5

CTB1224

1200

2400

MT>135

<18

3-0

85-180

7.5

CTB1230

1200

3000

MT>135

<18

3-0

100-180

7.5

CTB1530

1500

3000

MT>135

<14

3-0

170-280

11
