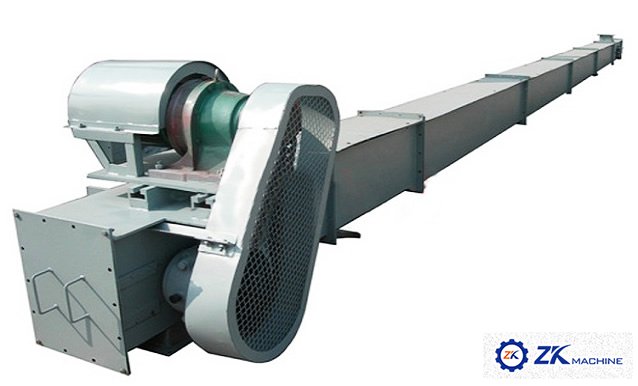

FU Scraper Conveyor

Model: FU200 -- FU410



Material ideal size: ≤ 11 (mm)



Max. size: ≤ 21 (mm)



Conveying capacity: 16-240 (m3/h)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

FU type scraper conveyor (chain conveyor) is an conveying equipment which is traction components on the roller chain plate and continuous. This type of device with compact structure, good sealing, rational layout, application convenient maintenance, etc.

It is mainly used for grinding powder, particle, small lump with strong abrasive in horizontal or inclination, also widely used in chemical industry, metallurgy, mining, building materials, electric power, light industry, traffic, road construction, port, etc.

Features

1. Because the scraper conveyor is the use of the material in the friction to drive the material move, therefore, the smaller resistance during operation, low energy consumption, energy saving about 50% less in compared with the screw conveyor.

2. Conveyor chain adopts high strength wear resistant alloy sleeve roller chain plate structure, and after the special technology processing, it has high strength, low friction coefficient, long working life and other characteristics;

3. Wide scope transportation, it should be transport various powder, granular, lump material with high capacity and long distance below 150 ℃.

4. The whole transport process conducted in confined Spaces, sealed safe and reliable, especially suitable for conveying volatile, toxic, corrosive, and special medium, etc.

5. The type scraper conveyor is completed, there are FU200, FU270, FU350, FU410, various types etc. It can customize according to customer’s demand for special.

Parameter

Model

FU200

FU270

FU350

FU410

Width (mm)

200

270

350

410

Scraper chain pitch (mm)

100

125

160

160

Blade speed (m/s)

0.17~0.53

0.17~0.53

0.17~0.53

0.1~0.53

Material ideal size (mm)

≤5

≤7

≤9

≤11

Max. size (mm)

≤10

≤14

≤18

≤21

Speed (m/s)

Capacity (m³/h)

0.17

16

20

40

65

0.21

22

40

50

80

0.36

40

70

110

160

0.40

58

90

140

190

0.53



110

180

240
