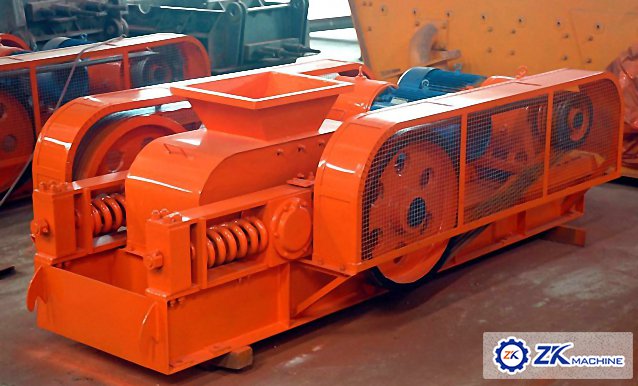

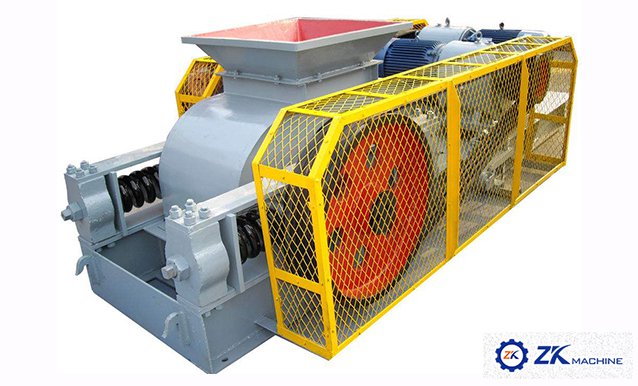

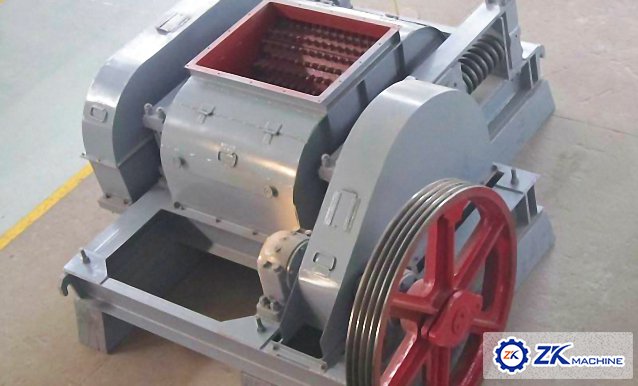

Double Roll Crusher

Capacity: 30 - 300 (t/h)


Roller Length: 500 - 1500 (mm)



Roller Dia.: 450 - 1200 (mm)



Application: Ore, sand, stone crushing

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Roll crusher is mainly used for secondary and fine crushing to materials below middle hardness, such as coking coal, clinker mineral, limestone, metallic and nonmetallic ore.  Roll crusher is available for ore dressing, chemical, cement, refractories, abrasive, building materials industries, finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh,especially in the building materials industry to produce melon meters stone and green bean products etc, and have the more excellent effect than general stave machinery , in recent years, also widely used in crushing steel grit industries.

Application of roller crusher:
This series roller crusher is a crushing machine researched and manufactured by our company for coarse crushing. The roll crusher is widely used for crushing high hard and medium hard materials in such industrial departments such as metallurgy, building material and refractory. It has the features of low noise, little powder dust, reliable performance and convenient maintenance.

Features

1.It's available for ore dressing, chemical, cement, refractories, abrasive, building materials industries;

2.Roll crusher has the more excellent effect than general stave machinery;

3.Finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh;

4.Roller crusher is stable operation, easy maintenance, low cost, output size adjustable.

Parameter

Certification and type Roller diameter
(mm)
Roller length
(mm)
Max.feed lump size
(mm)
Size marker
(mm)
Capacity
(t/h)
Motor power
(kw)
Weight
(kg)
Overall dimension
(mm)
2PGC450*500 450 500 200-500 25-125 30-60 11 3800 2260*2200*766
2PGC600*750 600 750 300-600 30-150 60-100 22 7200 2780*3065*1310
2PGC600*900 600 900 300-600 30-150 80-120 37 7800 4500*1900*1350
2PGC800*1050 800 1050 500-800 30-150 100-160 45 12600 2550*2050*1100
2PGC900*900 900 900 600-900 30-200 150-200 45 13500 2780*4100*1550
2PGC1015*760 1015 760 700-950 30-200 150-200 90 18800 7800*3200*1980
2PGC1200*1500 1200 1500 800-1050 30-200 200-300 110 5200 8010*4500*2050
