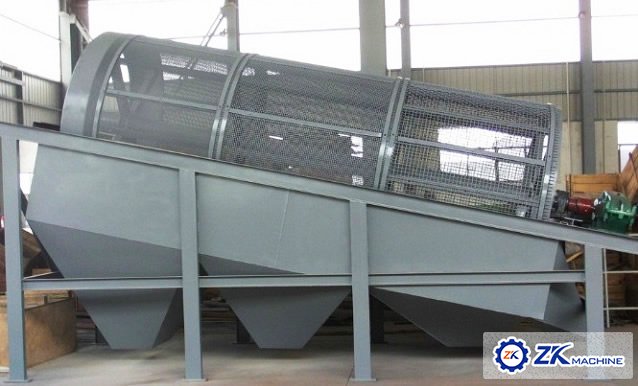

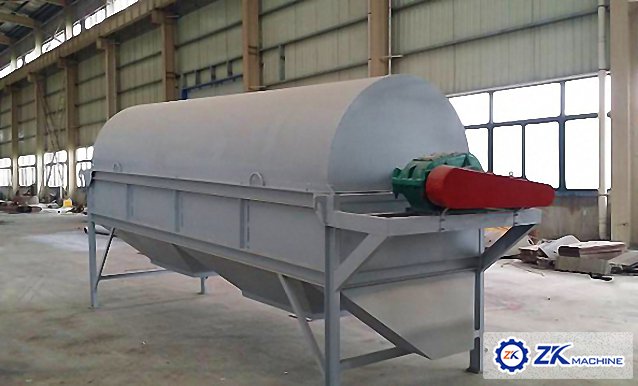

Trommel Screen

Model: GTS-3, GTS-15



Output: 1 - 50 (t/h)



Diameter: Φ1200 - Φ1500 (mm)



Length: 3.5 - 6 (m)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Trommel (Rotary) Screen is applied in processing varity particles grading. it is suitable for screening and classifying gravel, clay, sand, lump coal, coal dust, coal washing, lump, powder substance, etc.

Application Range of Trommel Screen:
1) Coal industry: separation of lump coal and pulverized coal.
2) Quarry: separation of sand and gravel.
3) Ore dressing plant: classification of different size stone, separation of stone, rock flour and soil.
4) Chemical industry: classification of different size material, and separation of powder material.
5) Mineral processing industry: classification of different size material, and separation of powder material.

Features

1. Designed to fit your operation: Trommel screen can be customized to meet different capacity and working site;
2. Free from pollution: Fully enclosed structure, no dust pollution, improve working conditions for operators as well;
3. Variable application range: Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting, etc;
4. Superior design: Simple structure, easy maintenance, steady operation, low energy consumption.

Parameter

Model

Capacity (t)

Output (t/h)

Diameter (mm)

Length (m)

Powder (kw)

GTS-3

30000

10.4

Φ1200

3.5

4

GTS-5

50000

13.8

Φ1200

4

5.5

GTS-10

100000

27.8

Φ1400

5

7.5

GTS-15

150000

47.7

Φ1500

6

11

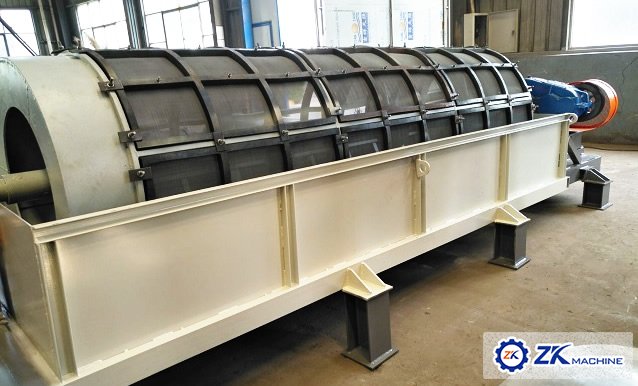

Related Cases MORE >
