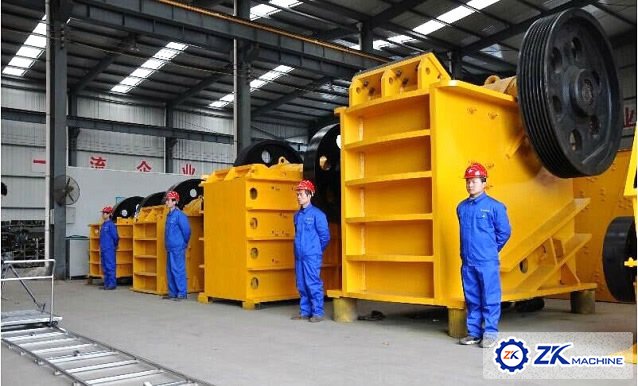

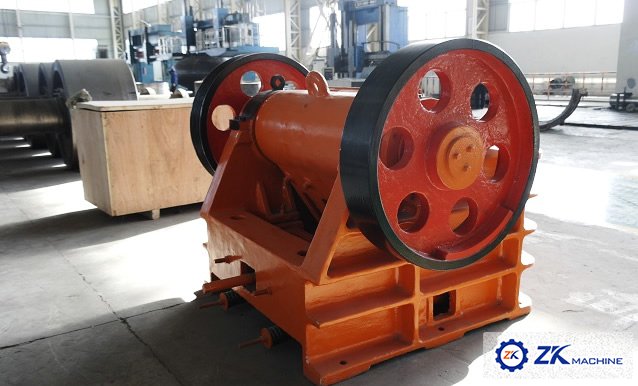

Jaw Crusher

Model: PE Series Jaw Crusher


Capacity: 1 - 500 (t/h) (customized)


Max Feeding Size: 1000 (mm) (customized)



Applied Material: mineral, stone, rock, building construction materials, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Jaw crusher is a large kind of complex tilting crushing equipment, and it is mainly used for crushing medium hard ore and rock whose compression strength is no more than 250MPa, and with the quality of large crushing ratio, high yield, uniform particle size, reliable, easy to maintain and low operating cost, it is widely used in mining, metallurgy, construction, roads, railways, water conservancy, chemical industry and etc. PE series is used for coarse crushing different kinds of ores and rocks, and PEX series is used for intermediate and fine crushing.

Jaw Crushers is applied in large block of material crushing in mining industry, metallurgical industry, construction industry, highway, railway and chemical industry.

Features

1. High quality: Unique jaw head structure sealed guarantee extend bearing life.

2. Deep cavity broken: High crushing ratio, even output granularity.

3. High strength: The crusher has large capacity and big stength.

4. High bearing capacity: The bearing pedestal adopts unitary cast steel structure.

5. Outlet easy operation: More advanced movable jaw assembly makes it more durable.

6. Unique flywheel design: Effecively reduce the vibration the machine running more smoothly.

Parameter

Model Inlet Size
(mm)
Max feeding size
(mm)
Adjusting Range of Discharging outlet
(mm)
Capacity
(m³/h)
Power
(kW)
Weight
(t)
PE-250×400 250×400 210 20~60 3~13 15 2.8
PE-400×600 400×600 340 40~100 10~35 30 6.5
PE-500×750 500×750 425 50~100 25~60 55 10.6
PE-600×900 600×900 500 65~180 30~85 55~75 15.5
PE-750×1060 750×1060 630 80~180 72~150 90~110 28
PE-800×1060 800×1060 680 100~200 85~143 90~110 30
PE-870×1060 870×1060 750 170~270 145~235 90~110 30.5
PE-900×1060 900×1060 780 200~290 170~250 90~110 31
PE-900×1200 900×1200 780 95~255 100~240 110~132 49
PE-1000×1200 1000×1200 850 195~280 190~275 110~132 51
PE-1200×1500 1200×1500 1020 150~300 250~500 160 100.9
PEX-150×500 150×500 120 10~40 3~15 11 2.5
PEX-150×750 150×750 120 10~40 5~16 18.5 3.5
PEX-250×750 250×750 210 15~50 8~35 30 5.8
PEX-250×1000 250×1000 210 15~50 13~45 37 6.4
PEX-250×1200 250×1200 210 15~50 13~50 37 7.7
PEX-300×1300 300×1300 250 15~50 20~60 75 11
