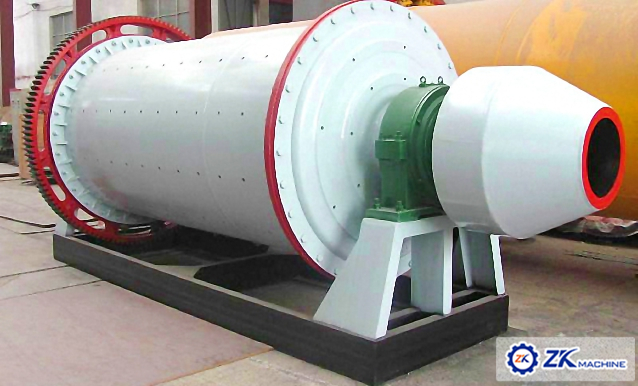

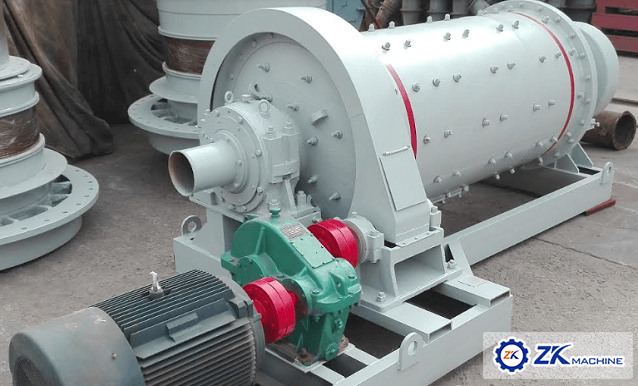

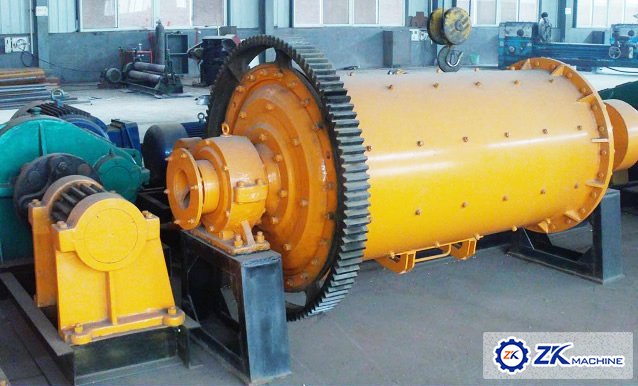

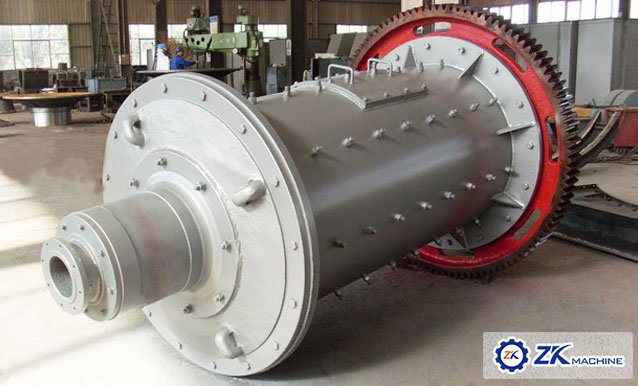

Small Ball Mill

Capacity: 0.65 - 2 (t/h)

Max feed size: 25 (mm)

Discharge size: 0.075 - 0.89 (mm) (adjustable)

Application: ore, coal, cement, slag, limestone, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Small Ball Mill is a small powder and superfine powder milling equipment employed to grind minerals such as calcite, cretaceous, caoline, limestone, bentonite, talcum, mica, magnesite, illite, pyrophyllite, vermiculite, sepiolite, attapulgite clay, rectorite, diatomite, barite and so on. The particles could be milled to 0.074mm, meeting the different requirements.

Working Principle:

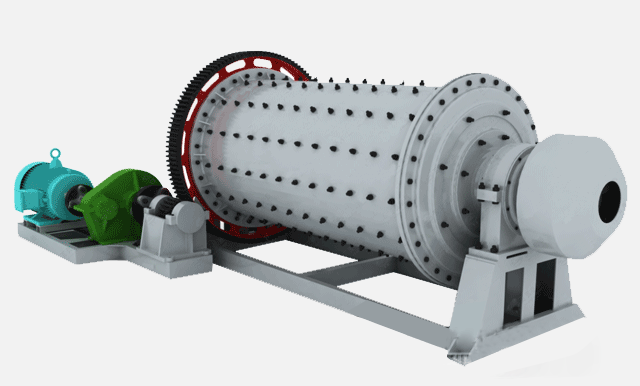

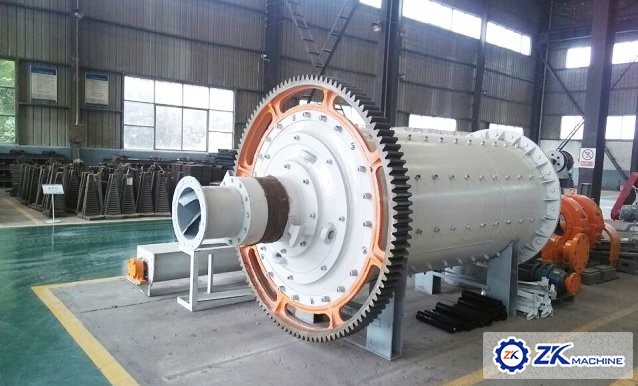

The small ball mill is a horizontal rotary cylindrical equipment driven by gears outside. When the small ball mill works, the raw materials are evenly fed from the feeding port through the hollow shaft into the first chamber with stepped lining plates or wavy lining plates of various steel balls in different sizes, and the centrifugal force brings the steel balls to a certain height and then the balls fall down to impact, crush and grind the materials. After leaving the first chamber, the qualified particles enter through a single dividing plate into the second chamber with flat plates and steel balls. The materials are further grinded in this chamber where the final qualified particles and powders are discharged from the opening port.



Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1. Adopt ultra-thick steel plate; strong cylinder structure design.
2. High manganese steel lining plate with good wear resistant and long service life.
3. Mini ball mill base seat is made of high quality Babbitt metal ensuring the stable operation of the whole machine.
4. Pinion gear and bull gears with high strength and high precision, high quality reduction gear and motor.
5. Professional design and manufacturing process, on time delivery, fast shipping.
6. The Mill Ball Mills work stably and reliably, and can be divided into dry Ball Mills and wet Ball Mills according to the materials to be grinded and the discharging styles.

Parameter

Model

Cylinder

diameter
(mm)

Cylinder

length
(mm)

Motor

Model

Motor

 power
(kw)

Motor

RPM
(r.p.m)

length
(mm)

Width
(mm)

Height

(mm)

Processing

Capacity

(t/h)

Maximum

Ball

Volume

(t)

weight
(kg)

MQG0909

900

900

Y225S-8

17

730

3120

2210

2020

0.16~0.8

0.96

4620

MQG0918

900

1800

Y225M-8

22

730

3620

2230

2020

0.33~1.6

1.92

5340

MQG1212

1200

1200

Y250M-8

30

730

5100

2800

2500

0.16~2.6

2.4

11438

MQG1224

1200

2400

Y315S-8

55

730

6500

2800

2500

0.26~6.15

4.8

13200

MQG1515

1500

1500

JR115-8

60

725

5650

3260

2700

1~3.6

4

13700

MQG1530

1500

3000

JR125-8

95

725

7480

3300

2700

2~6.8

8

18690

MGG2122

2100

2200

JR128-8

155

730

8070

4839

3794

5~29

16

47400

MQG2136

2100

3000

JR148-8

240

735

8640

4839

3794

8~40

21

50600

MQG3045

3000

4500

TDMK630-36

630

167

_

_

_

20~45

55

135000

MQG3245

3200

4500

TDMK800-36

800

167

_

_

_

75~100

68

155000

MQG3655

3600

5500

TDMK1250-40

1250

150

_

_

_

120~190

97

205000


☆ We manufacture a variety types and models of ball mill, also provide customized design according to customer's needs.
