Double Roller Granulator

Model:  DG3530 - DG6055



Dia.: 350 - 600 (mm)



Length: 300 - 550 (mm)



Capacity: 1 - 6 (t/h)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

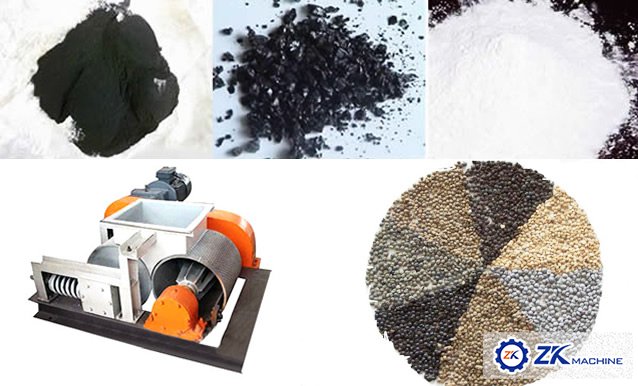

Double roller granulator is a machine for producing powder or small particle material with the special shape by rolling cyclinder extruding action. The granulator has the features of even outputting particle size, high rate of finished products, high production capacity, compact structure, reasonable layout, small area needed and high automatic control.

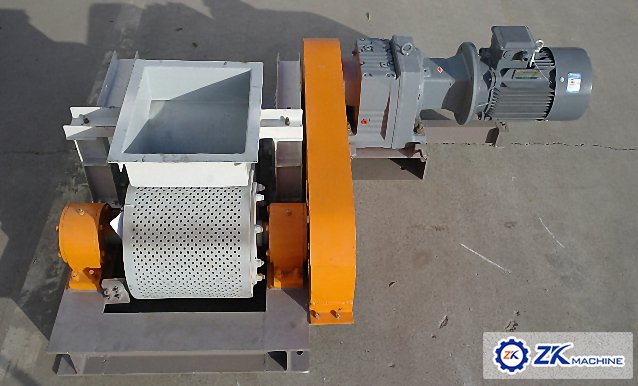

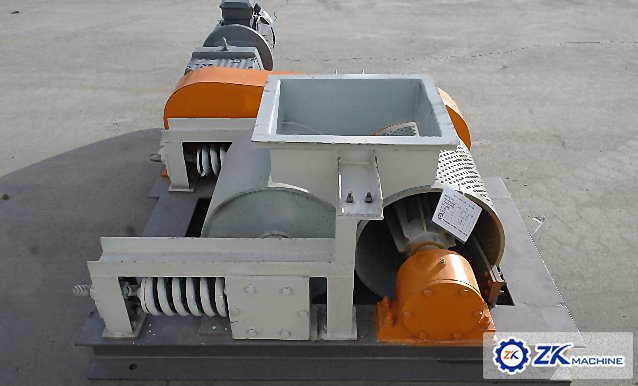

The double roller granulator is composed by fixed rolling device, movable rolling device, compact and adjusting device, frame, driving device and etc. The working principle is motor drive fixed roller by gear reducer, at the same time the fixed roller drive touch move roller by fricition drive on roller face, materials enter into granulator by feeding chute, pressed by double roller, and compression moulding when through fixed roller model sag hole, the molding materials are discharged from outlet after cut by scraper.

Features

1. The granulator has the features of even outputting particle size
2. High rate of finished products, high production capacity
3. Compact structure, reasonable layout
4. Small area needed and high automatic control.

Parameter

Model Roller Motor Power
(kW)
Capacity
(t/h)
Diameter (mm) Length (mm) Rotating Speed (r/min)
DG3530 φ350 300 58 5.5 1
DG4035 φ400 350 58 7.5 1-2
DG4540 φ450 400 58 11 2-3
DG5045 φ500 450 58 15 3-4
DG6055 φ600 550 65 18.5 5-6
