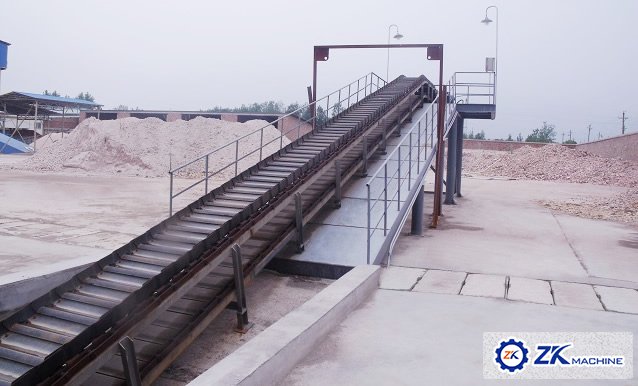

Apron Conveyor

Model: BL650 -- BL1000



Apron width: 650 - 1000 (mm)



Chute height: 160 - 350 (mm)



Capacity: 20 - 200 (m³/h)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Apron conveyor is driving by cycle running chain, that can transport all kinds of bulk materials along horizontal or inclined (inclination angle is less than 25 °) direction. Since the carrying part and running parts are made by metal, thus compared with other continuous conveying machinery, apron conveyor can transport material with bigger bulk density & size, and material with sharp edges with strong abrasion, especially suitable for conveying high temperature( 600~700 ℃ ) material. Therefore, apron conveyor is wildly used in mining, building materials, metallurgy, coal, chemical and other industries for transporting sharp, burning, corrosive material.

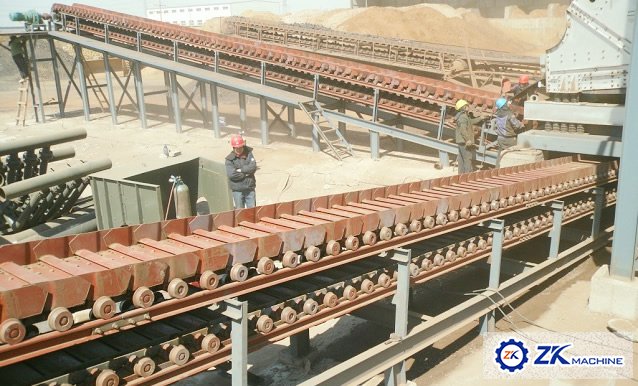

Application: Transporting high temperature material for cement, lime, clinker, mining industry.

Features

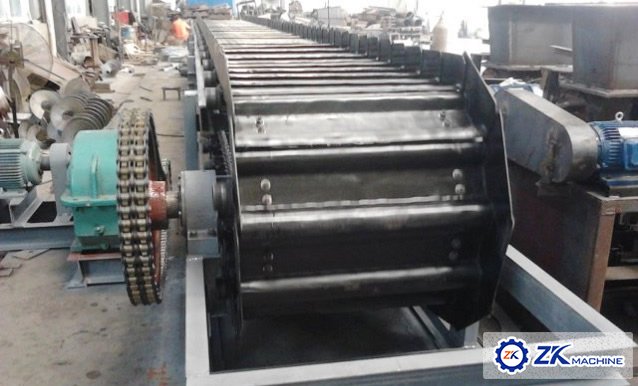

1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;

2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.

3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation;

4. The chain has heavy load, high strength and high impact resistance because of heat treatment; chain plate joint sleeve use alloy steel carburizing with high abrasion resistance.

Parameter

Model

Apron width

(mm)

Chute height

(mm)

Chute

Speed

(m/s)

Slope

(°)

Capacity

(m³/h)

Chain

Thickness

(mm)

Material

Pitch

(t/mm)

Destroy load

(KN)

Safety factor

Allowable traction
(double chain) (KN)

BL650

650

160~200

4

Q235

0.05~0.5

≤25

20~80

250

168

11.6

25

BL800

800

200~250

5

Q235

0.05~1

≤25

50~150

320

224

8

50

BL1000

1000

250~350

6

Q235

0.05~1

≤25

80~200

320

332

7.6

75
