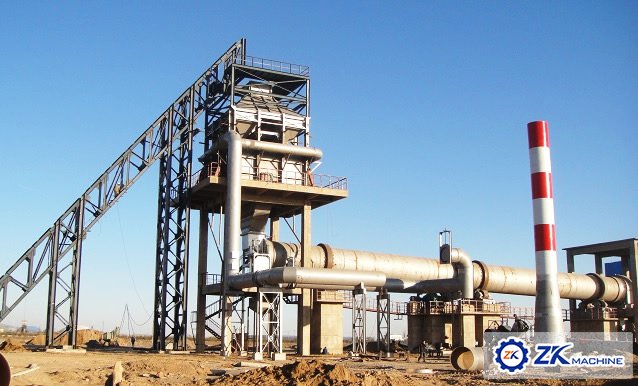

Zinc Oxide Rotary Kiln

Model: Φ1.4×33 - Φ3.2×50 (m)



Capacity: 180 - 10000 (t/d)



Weight: 149.61 - 1659 (t)



Raw Material: Lead and zinc mineral raw material

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Zinc oxide rotary kiln is the calcination equipment used for processing the zinc-bearing materials to get the zinc oxide. Because the zinc oxide is very fine powder, so we have to make a special rotary kiln for zinc oxide production. The zinc oxide rotary kiln manufactured by ZK Corp. is specialized used and designed for the production of zinc oxide, as the zinc oxide exists in powdery.

Application of Zinc oxide rotary kiln :
Mainly used in building materials, metallurgy, chemical, refractory materials, environmental protection industries, chemical products - water zinc sulfate, zinc sulfate heptahydrate, refractories, the zinc oxide is the main raw materials for the production of steel-making zinc ball. For Building construction, it is widely used in the production for containers, fire board, arts and crafts, vegetable greenhouses, wall insulation board, activity board, asbestos etc. Because of good adsorption, low melting point, so it is also used for paint coatings refractory bricks, magnetic materials, ceramics, rubber tires etc.

Features

1. Zinc oxide rotary kiln has simple configuration, it can reduce the investment costs and improve productivity.

2. Zinc oxide rotary kiln has high beneficiation efficiency, and it can produce good quality zinc oxide by the calcination process, and this kiln has less nodulation.

3. The entire zinc oxide production line has smooth operation and large production capacity, in the smelting process, it can also greatly reduce the fuel cost.

Parameter

Model

 Kiln body size

Capacity

Rotate speed

Motor power

Weight

 Note

Dia. (m)

Length(m)

Slope (%)

(t)

(t/h)

(r/min)

(kW)

(t)



Φ1.4×33

1.4

33

3

0.9-1.3

0.39-3.96

18.5

47.5

----

Φ1.6×36

1.6

36

4

1.2-1.9

0.26-2.63

22

52

----

Φ1.8×45

1.8

45

4

1.9-2.4

0.16-1.62

30

78.2

----

Φ1.9×39

1.9

39

4

1.65-3

0.29-2.93

30

77.59

----

Φ2.0×40

2

40

3

2.5-4

0.23-2.26

37

119.1

----

Φ2.2×45

2.2

45

3.5

3.4-5.4

0.21-2.44

45

128.3

----

Φ2.5×40

2.5

40

3.5

9.0-10.5

0.44-2.44

55

149.61

----

Φ2.5×50

2.5

50

3

6.25-7.4

0.62-1.86

55

187.37

----

Φ2.5×54

2.5

54

3.5

6.9-8.5

0.48-1.45

55

196.29

----

Φ2.7×42

2.7

42

3.5

10.0-11.0

0.10-1.52

55

198.5

----

Φ2.8×44

2.8

44

3.5

12.5-13.5

0.437-2.18

55

201.58



Φ3.0×45

3

45

3.5

12.8-14.5

0.5-2.47

75

210.94

----

Φ3.0×48

3

48

3.5

25.6-29.3

0.6-3.48

100

237



Φ3.0×60

3

60

3.5

12.3-14.1

0.3-2

100

310

----

Φ3.2×50

3.2

50

4

40.5-42

0.6-3

125

278

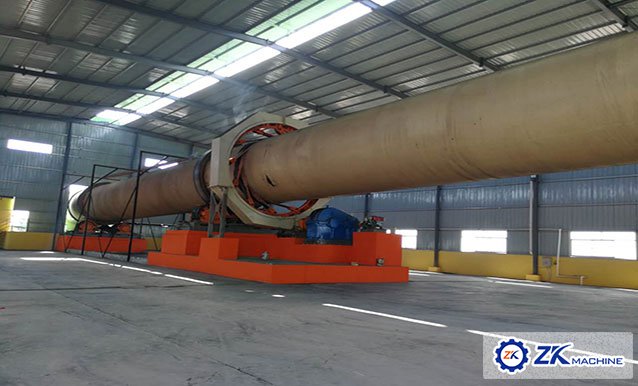

Related Cases MORE >
