Introduction

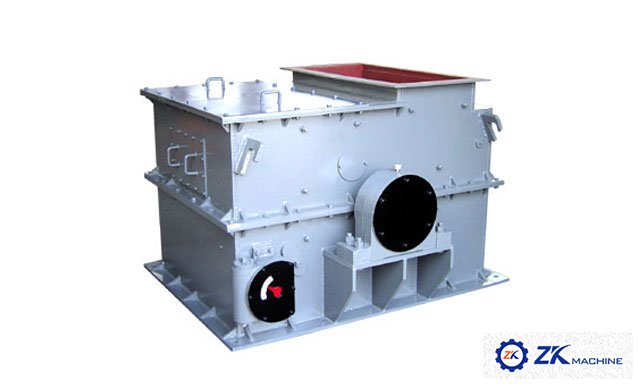

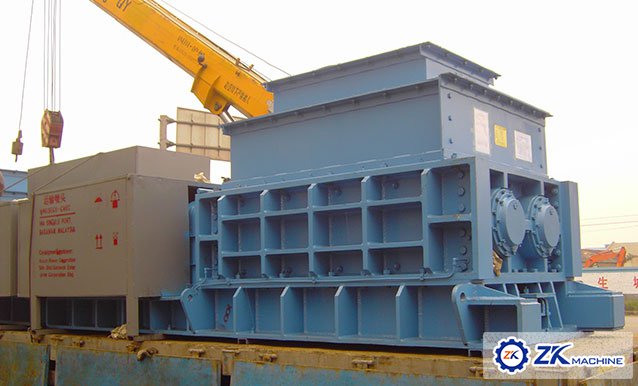

Ring Hammer Crusher is a kind of impact and rotor crusher with ring hammers. When the material enters into the crusher, it will be crushed by the high speed ring hammer fistly. Crushed materials obtain kinetic energy from ring hammer at the same time,rush to the breaking plate with high speed,by the second break,then fell on the screen plate,materials is crushed further by cutting,pressure,grinding from ring hammer and interaction each other, discharged from screen.The sundries can not be crushed come into the metal collector,cleaning regularly.

Ring Hammer Crusher is used to crush brittle materials, like gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100Mpa; the surface water no more than 15%.

Parameter

Model	Rotor model (mm)	Max feed  size (mm)	Discharge  size (mm)	Motor model	Power  (kW)	Capacity (t/h)
PCH-0402	400x200	200	≤30	Y132M2-6	5.5	8-12
PCH-0404	400x400	200	≤30	Y160L-6	11	16-25
PCH-0604	600x400	200	≤30	Y180L-6	15	22-33
PCH-0606	600x600	200	≤30	Y225M-6	30	30-60
PCH-0808	800x800	200	≤30	Y280M-8	45	75-105
PCH-1010	1000x1000	300	≤30	Y315M2-8	90 110	160-200
				Y315M3-8		200-245
PCH-1016	1000x1600	300	≤30	Y312-8	155 220	300-350
				Y400-8		400-500
PCH-1216	1200x1600	400	≤30	Y400-8	280 355	500-620
				Y450-8		620-800
PCH-1221	1200x2100	400	≤30	Y450-8	450	800-1000
