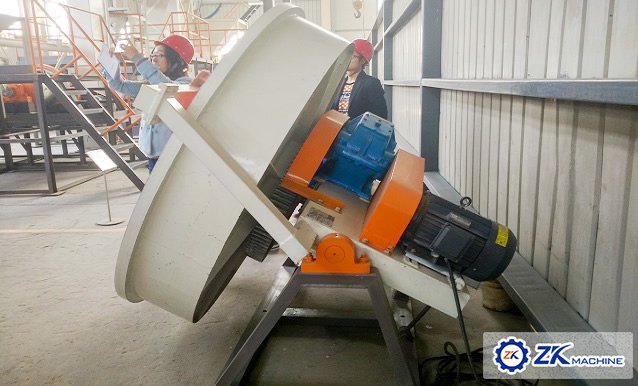

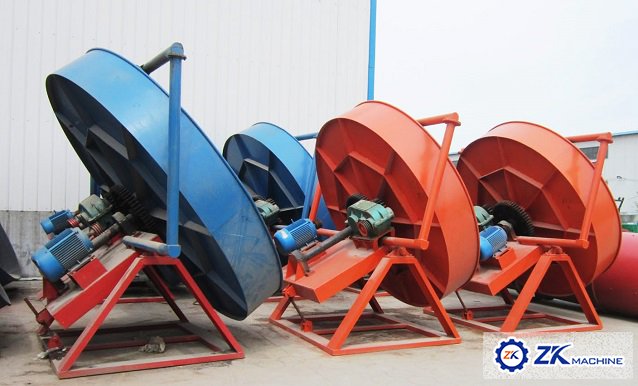

Disc Granulator

Diameter: 1000 - 4200 (mm)



Height: 250 - 800 (mm)



Application: cement, steel, fertilizer industry



Type: unpowered / powered scraper

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Disc Granulator is divided into unpowered scraper disc granulator (PQW) and powered scraper disc granulator (PQ). The two kinds of disc granulator are all have the feature of simple structure, convenient operation, the moisture of pellet can be easily control and high hardness. The disc granulator adopts massive structure, the disc bottom reinforced by multiple radiation steel plate. The motor and reducer adopt flexible belt driving, so the life time is increased by the smooth start and low impact.

Application:
The disc granulator is the main equipment for pelletizing by powder material and widely used in cement industry, steel industry and fertilizer industry.

Working principle:
The uniform particle core was made by raw material powder, then sent into the disc, after that the core go along a parabola by centrifugal force, friction force and gravity in the disc, the moisture will go out of the core surface in the rolling process, because of the cohesiveness and plasticity, the core will become bigger with raw powder in the process. The pellet has well intensity because of the material cohesiveness and the natural volatilization of surface liquid film. When the disc inclination, edge height, rotate speed and moisture all fixed, the pellets with different diameter will rolling down from disc edge by different angle cause of different gravity, then discharging from the disc edge by rotating inclined disc body.

Features

1. Novel structure with light weight and low height, and convenient process layout;
2. Disc inclination convenient to adjustment.
3. Disc granulator composed by disc bottom and section, the section can adjust up and down along disc body, the pellet can't be strain guarantee by flange at the end of disc section.

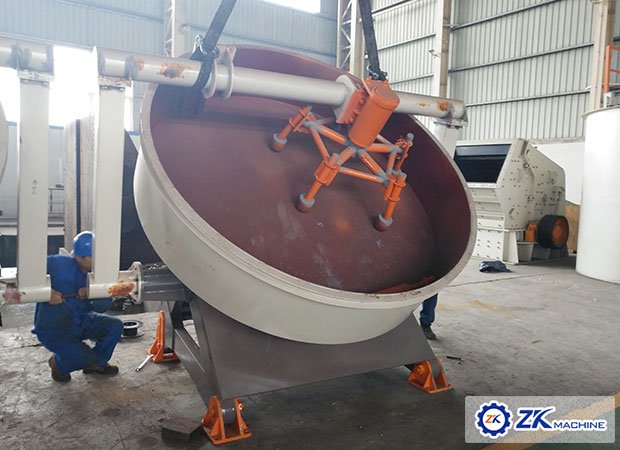

4. The scraper device composed by unpowered scraper and powered scraper, which supporting the use of optimized disc when cleaning the bottom and side, then the pelletizing result is very well and qualified pellets can be reached over 90%.

Parameter

Unpowered scraper disc granulator technical parameters

Type

Disc Granulator

Power (kW)

Dia (mm)

Height (mm)

Slope (°)

Speed (r/min)

PQ10W

1000

250

35-55

25

4.5

PQ16W

1600

300

35-55

19

4.5

PQ22W

2200

500

35-55

14

15

PQ25W

2500

500

35-55

14.25

15

PQ28W

2800

640

35-55

11.81

18.5

PQ32W

3200

640

40-50

9.06

22

PQ36W

3600

700

40-50

8

22

PQ42W

4200

800

40-50

7

30



Powered scraper disc granulator technical parameters

Type

Disc Granulator

Main Power (kW)

Weight (t)

Dia (mm)

Height (mm)

Slope (°)

Speed (r/min)

PQ10

1000

250

35-55

25

4.5

1.8

PQ16

1600

300

35-55

19

4.5

2.7

PQ22

2200

500

35-55

14

15

3.9

PQ25

2500

500

35-55

14.25

15

5.2

PQ28

2800

640

35-55

11.81

18.5

5.7

PQ32

3200

640

40-50

9.06

22

7.3

PQ36

3600

700

40-50

8

22

8.6

PQ42

4200

800

40-50

7

30

11.2
