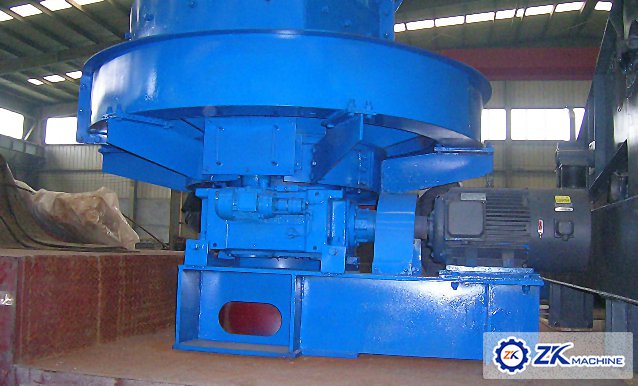

Disk Feeder

Model: DB4 - DB13



Disk Dia.: 400 - 1300 (mm)



Dis Rev.: 10 - 6.5 (r/min)



Feeding Size: 15 - 50 (mm)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Disk feeder is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.

Features

1. Least chance of materials being destroyed in the process of feeding.
2. Continuous feeding of materials that are not uniform in size and shape.
3. Less drive power
4. Air-tight construction is feasible.
5. Applicable to large size silo at large feed rate.

Parameter

Model and spec.

Disk dia.
(mm)

Capacity
(m3/h)

Disk rev.
(r/min)

Feeding size
(mm)

Motor

Model

Power (kw)

DB4

400

0.19-1.32

10

15

Y90S-6

0.75

DB6

600

0.69-3.9

8

25

Y90L-6

1.1

DB8

800

1.18-7.65

8

30

Y90L-6

1.1

DB10

1000

2.59-16.7

7.5

40

Y100L-6

1.5

DB13

1300

4.19-27.8

6.5

50

Y132L-6

3.0
