Apron Feeder

Model: GBQ50-6 - GBQ80-12



Capacity: 60 - 107 (m3/h)



Weight: 3894 - 6556 (kg)



Application: Mining, quarry, coal, stone, cement feeding, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

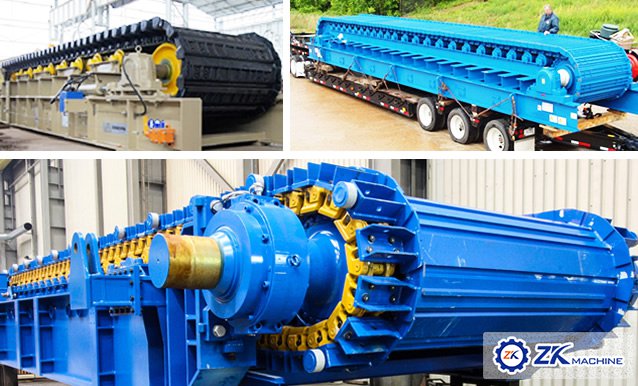

Apron feeder is one of the machines for continuously transporting materials. It is widely used to transport large-volume materials to various crushing equipment uniformly and continuously in a short distance. Apron feeder can perfectly solve the transportation problem of loose and block materials as well as large feeding quantity problem in large and medium production lines. It is especially suitable for transporting large, high temperature and sharp materials, and it can reliably work in harsh and humid outdoor environments. Now the apron feeder has been widely used in cement, building materials, metallurgy, mining and other industrial sectors for its superior performance advantages.

How to choose the machine suitable for you:
1. What’s your throughput? - Such as 5 t/h, 10 t/h, 20 t/h, etc.
2. How long you need conveying distance? - Such as 5m, 20m, 50m, 100m, etc.
3. What’s material you need conveying? - Such as coal, cement, stone, ore, etc.
4. What’s the angle of inclination? - Such as 5°, 10°, 15°, 25°, etc.
Tell us those data, we can help you choose the suitable machine for you.

Features

1. Apron bucket made by wear-resistant steel plate with high precision, the cumulative error is small, running accurate, stable and reliable;
2. Adaptable, can transport material with bigger size & sharp edges & high temperature. In the transportation process the conveyor will complete material cooling and cleaning at the same time.
3. With chain transmission, apron conveyor has advantage of high intensity, high efficiency, reliable operation, heavy load, suite for long-distance transportation;
4. The chain has heavy load, high strength and high impact resistance because of heat treatment; chain plate joint sleeve use alloy steel carburizing with high abrasion resistance.

Parameter

Model

Chain plate

Speed
(m/s)

Feed  size (m3/h)

Capacity
(m3/h)

Power
(kw)

External  dimensions(L*W*H)
mm×mm×mm

Weight
(kg)

Width (mm)

Length (mm)

GBQ50-6

500

6000

0.16

≤160

60

7.5

7476×2745×980

3894

GBQ50-9.5

9500

10976×2720×980

5048

GBQ50-12

12800

0.1

41

14276×2796×980

6183

GBQ50-14

14000

0.16

60

11

15476×2826×980

7315

GBQ80-6

800

6000

107

7.5

7476×3045×980

4274

GBQ80-10

10000

11476×3045×980

5832

GBQ80-12

12000

11

13476×3126×980

6556
