NE Bucket Elevator

Model: NE15 - NE100



Capacity: 5 - 110 (m³/h)



Max. feeding size: 40 - 70 (mm)



Max. height: ≤ 45 (m)

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

NE plate chain bucket elevator is a product that introduce advanced technology from abroad, it’s a vertical conveyor be common used. It main be used transport powder, particle and block materials, and also for large abrasion material, such as cement, sand, coal, grain, proppant sand and so on. Widely used in construction, power, metallurgy, machinery, chemical, mining industry and so on. The temperature of material is below 200℃ usually, the height can be reach to 45 meters.

NE bucket elevator adopt flow-through loading, reducing the bucket wearing from material efficiency. Improve the performance of bucket elevator.

Features

1. Large scope of elevate: not only elevate common powder, particle and block materials, but also can elevate large abrasion materials;

2. Small power for driving, low energy consumption, save energy effective; compare with roller chain bucket elevator, if elevate same material to same height, energy consume is around 1/3-1/2;

3. Adoption complete sealing design, there is no dust pollution during operation;

4. Shell with indent structure , strong rigidity, high precise, nice appearance.

Parameter

Model

Capacity

(m³/h)

Power

(Kw)

Speed

(m/s)

Bucket

Max. feeding size (mm)

Max. height

(m)

Volume/L

Width/mm

Pitch/mm

NE15

5~16

1.5~4

0.5

2.5

250

203

40

≤35

NE30

15~30

1.5~11

7.8

300

305

55

≤45

NE50

30~50

1.5~18.5

15.7

300

305

60

≤45

NE100

70~110

5.5~30

35

400

400

70

≤45

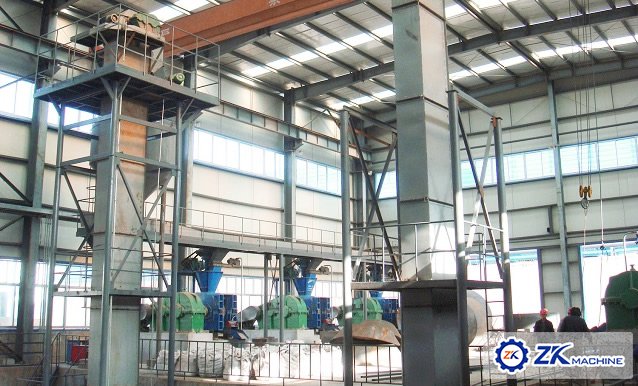

Related Cases MORE >
