Oil Fracturing Proppant Production Line

Capacity: 10,000-50,000 (m3/a)



Main Materials: Bauxite, Kaolin



Main Equipment: Ball Mill, Rotary Kiln, Granulator



Application: Oil fracturing proppant / Ceramic sand

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

We are leading manufacturer of complete equipment for Fracturing Proppants Production Line. We can provide the whole service of design, equipment/spare parts supply, investment consultation, installation and operation training for Fracturing Proppants Production Plant. We have done many successful projects in both China and overseas countries.

We also produce different specifications of ceramic proppant. Ceramic sand (Oil Proppant) is a kind of products of ceramic particle, which has a high fracturing intensity, mainly used for oilfield as downhole proppant, the usage is to increase the output of oil and gas. So ceramic sand is a kind of green and environmental protection products. Ceramic sand (Oil Proppant) made of high quality bauxite and other additive material, granulating and calcining to increase the strength and density. It’s a substitute of natural quartz sand, glass sand, metallic sand and other low intensity proppant. Ceramic sand is the best proppant to increasing oil and natural gas output.

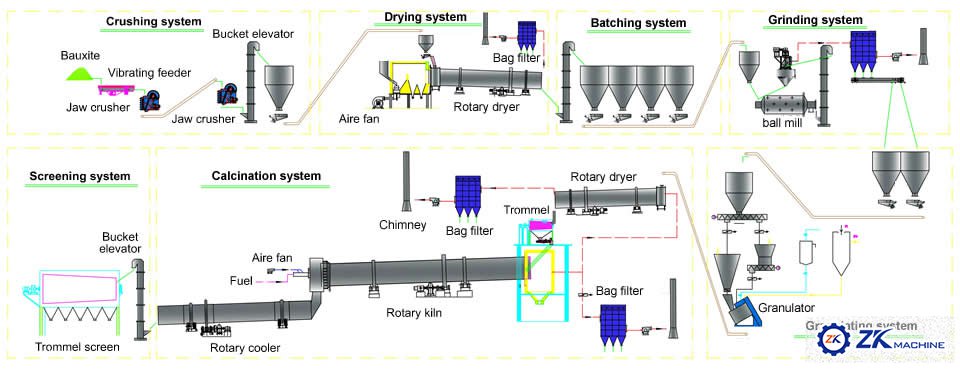

Following is the description of production process:
1. Crushing. The size of bauxite from mine is around 300~500mm, low moisture, After two-stage crushing which is composed by Jaw crusher and hammer crusher, the size of bauxite will be around 25mm.

2. Dosing. Bauxite, manganese powder, and other additional material will be transferred to belt conveyor through belt weigher to make sure the suitable proportion .If the moisture of bauxite or other material is more than 6% need to be drying at first .

3. Grinding. In grinding process ,the main equipment is ball mill and separator to make a close-circuit grinding system .The granulator required the material size will be lower than 300mesh .

4. Granulator. Raw material powder after grinding stored in hoppers .generally there have 2-3 hoppers, it can be discharged separately, also can be discharged with many hoppers collocation. Raw material powder will be transfer into a small silo, the silo has screw metering device or belt weigher .The material will be conveying to granulator, meanwhile the water will be spraying to granulator by pipeline pump. When granulator rotating, the raw material can be made into various particle size Raw ceramic sand will be transported to rotary sceen by belt conveyor, qualified sand will be calcined in rotary kiln, and the oversize will returns to raw material grinding process. The granulator system is totally automatic, continuously, matching with bag-type dust collector, can purification the exhaust air.

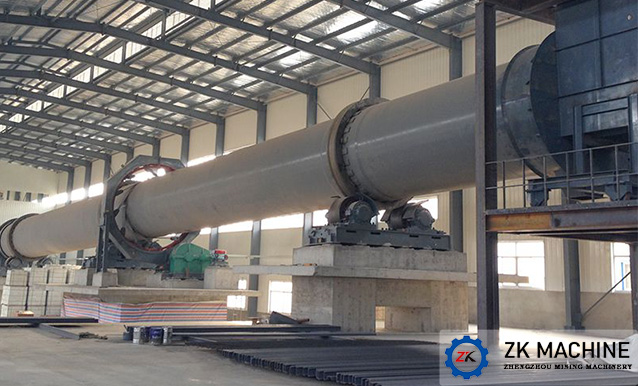

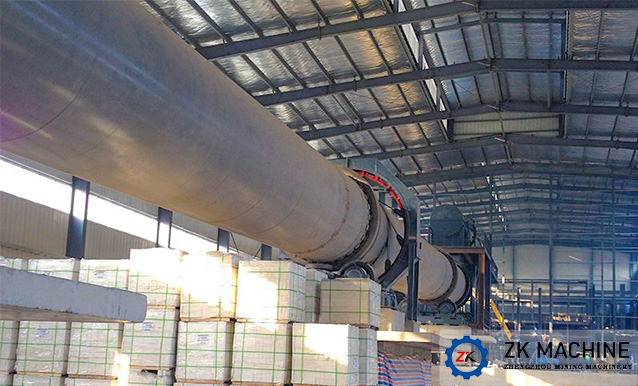

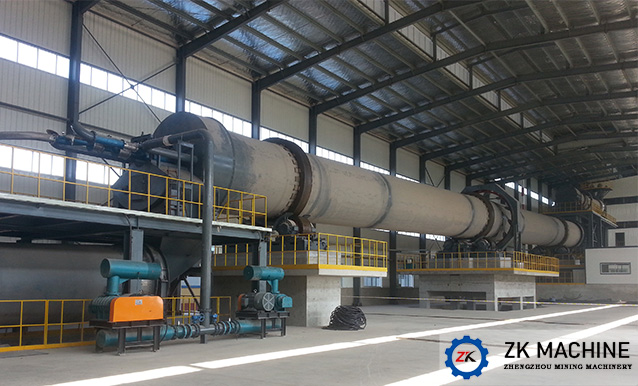

5. Calcining. Raw ceramic sand be calcined in rotary kiln , with the revolution and slope of rotary kiln, calcined ceramic sand move toward to the kiln head, meanwhile, pulverized coal spray into the kiln burner from kiln head, raw ceramic sand will be calcined into ceramic sand with high intensity in the rotary kiln.

6. Pulverized coal preparation. Pulverized coal preparation use ball mill or vertical mill, which can drying the coal with hot wind from kiln hoodsl. Use separator can adjust the fineness of pulverized coal at will; it provides sufficient conditions for full burning of pulverized coal.

7. Fineshed product cooling. The cooling of ceramic sand genergally use rotary cooler, it is simple and reliable when working, secondary air of cooler absolutely enter to the kiln, multi-channel burner, can save a lot of energy. The temperature of ceramic sand after cooler is very low, can be touched by hand.

8.Screening. Ceramic sand after the cooler can be directly transported to multistage vibrating screen, it can be divided into many particle grade according to requirements.
Ceramic sand specification
Model 1: 0.45-0.9mm (20 mesh-40 mesh) high intensity and middle density
Model 2:  0.9-1.25mm (16 mesh-20 mesh) high intensity and middle density
Model 3: 1.0-1.70mm (12 mesh-18mesh) high intensity and middle density
Model 4:  0.224-0.65mm (40mesh-60mesh) high intensity and middle density

9. Packing. Ceramic sand after screening will be transported to different silos , the silos connected with packing machine , finished products will be transferred to storage house to prepare for delivery. All dust points in the process need match with dust collector to purification the exhaust air.


Features

1. Energy Saving
The refractory lining of the rotary kiln consists of the outer insulation made of light refractory brick and inner compound refractory bricks. Such kind of lining will reduce the heat emission on the shell surface of the rotary kiln as much as possible. The pre-heater at the end of the rotary kiln will recycle the heat to preheat the material and save fuel by 40% and increase the output by 30%.

2. Low consumption
Rotary cooler at the discharge end of rotary kiln recycles the heat of Oil fracturing proppant which is discharged from the rotary kiln, and will preheat the secondary air up to 500℃.

3. Environmental protection
Two phases of dust collection including cyclone filter and bag filter, will control the dust emission below the limitation of the national standard.

4. High degree of automation
PLC control system improve the job efficiency.


Parameter

Model

Capacity (t/h)

Speed (rpm)

Slope (%)

Support No.

Gearbox

 Motor model

Power (kw)

Remark

Φ1.6×32m

2

0.58-2.85

4

3 set

ZQ75-50

YCTZ50-4A

18.5



Φ1.6/1.9×36m

2.5~3

0.53-1.59

4

3 set

ZQ110-7

YCTZ50-4B

22



Φ1.9×39m

3~3.5

0.53-1.59

4

3 set

ZQ125-7

YCT315-4A

37



Φ2.2×38m

5~6

0.214-1.64

3.5

3 set

 Main ZS125-5-II

Main YCT315-4A

37

Auxiliary ZQ40-40

Auxiliary Y112M-4

4

Φ2.2×45m

4~5

0.214-1.64

3.5

3 set

 Main ZS125-5

Main YCT315-4B

45



Auxiliary ZQ40-40

Auxiliary Y112M-4

4

Φ2.5×40m

6~7

0.62-1.5

3.5

3 set

 Main ZS165-5

Main YCT355-4A

55

Auxiliary ZS50-1

Auxiliary Y160M-6

7.5

Φ2.5×50m

5~6

0.62-1.5

3.5

3 set

 Main ZS165-5

Main YCT355-4A

55



Auxiliary ZS50-1

Auxiliary Y160M-6

7.5

Φ2.8×43m

7~8

0.62-1.5

3.5

3 set

 Main ZS165-6

Main YCT355-4B

75

Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ2.8×55m

6~7

0.62-1.5

3.5

3 set

 Main ZS165-6

Main YCT355-4B

75



Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3×50m

9~10

0.5-1.5

3.5

4 set

 Main ZS165-3

Main ZSN-280-11B

125

Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3×60m

7~8

0.5-1.5

3.5

4 set

 Main ZS165-3

Main ZSN-280-11B

125



Auxiliary ZS50-1

Auxiliary Y160L-6

11

Φ3.2×53m

10~12

0.4-1.5

3.5

3 set

 Main ZL130-16

Main ZSN4-280-11B

125

Auxiliary ZL50-10

Auxiliary Y180L-4

22

Φ3.2×64m

8~10

0.4-1.5

3.5

3 set

 Main NZS995-28VBR

Main ZSN4-280-21B

160



Auxiliary ZL50-9-2

Auxiliary Y180L-6

15

Φ3.5×70m

12~14

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSN-315-072

250



Auxiliary ZSY180-31.5

Auxiliary Y180L-4

22

Φ3.6×55m

14~16

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSYN-315-072

250

Auxiliary ZL65-16

Auxiliary Y180L-4

22

Φ3.8×58m

18~20

0.4-1.5

3.5

3 set

 Main ZSY500-40

Main ZSN315-072

250

Auxiliary ZL50-14

Auxiliary Y180L-4

22

Φ4.0×60m

104

0.4-1.5

3.5

3 set

 Main ZSY630-35.5

Main ZSN4-355-092

315

Auxiliary ZL65-16

Auxiliary Y200L-4

30
