Ceramic Ball Mill

Another Name: Intermittent ball mill / Batch ball mill


Dia.: 900 - 1830 (mm)



Capacity: 1.8 - 21 (t/h)



Feed size: 0-25 (mm)

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Ceramic ball mill is also called Intermittent ball mill / Batch ball mill. Ceramic ball mill can be used to grind feldspar, quartz, clay, silica and other hard brittle materials. It is widely applied in industrial production of high fine grinding materials. Ceramic ball mill grinding has dry and wet ways, of which the dry grinding can produce ultra-fine powder with the fineness of 1000-16000 mesh.

Ceramic ball mill  is mainly used for mixing, milling of the materials. It works cost less energy but with high fineness product. The machine could use different lining board according to product requirement to satisfy different customers requirement. The milling fineness depends on the milling time. The motor is started by the coupling which can reduce voltage and lower the starting electricity.

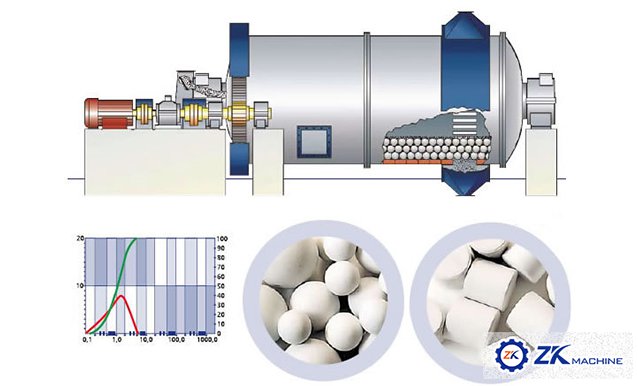

The Intermittent ball mill consist of cylinder, liner, feeder, feeder row, hollow shaft, bearing, transmission device and lubrication system. The structure is divided into integral type and freestanding type.

Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1. After finished material is discharged, another raw material can be put in for grinding, can’t continuous feeding and discharge material.
2. Different liners and grinding media can be used to meet different requirements.
3. The fineness of grinding material depending on milling time.
4. It can be used for wet or dry grinding, finished slurry can pass 1000mesh screen.

Parameter

Model

Barrel

Speed

Capacity

Feed size

Output size

Output

Motor

Weight

Dia.

Length

Type

Power

YMQG900x1800

900

1800

38

1.8

0-25

0.075-0.6

0.44-2.4

Y180L-6

15

4.2

YMQG900x3000

900

3000

38

2.5

0-25

0.075-0.6

0.7-2.9

Y180L-6

18.5

5.4

YMQG1200x2400

1200

2400

37

4.8

0-25

0.075-0.6

0.4-5.8

Y225M-6

30

8.2

YMQG1200x4500

1200

4500

37

5.2

0-25

0.075-0.6

1.4-5

Y280M-6

55

11

YMQG1500x3000

1500

3000

29

10

0-25

0.075-0.4

2.8-9

Y315S-6

75

16.3

YMQG1500x5700

1500

5700

29

12

0-25

0.075-0.4

3.1-7

Y315M-6

90

20.7

YMQG1830x6400

1830

6400

23.9

18.5

0-25

0.075-0.4

6-8.5

JR138-8

210

35.1

YMQG1830x7000

1830

7000

23.9

21

0-25

0.075-0.4

6-7

JR138-8

245

38
