Powder Grinding Plant

Configuration:Jaw crusher, grinding mill, bucket elevator, magnetic vibrating feeder, transmission gear, main engine.

Applied material: Feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramics, bauxite, manganese, phosphate rock, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Powder grinding plant is also called powder making plant, which is widely used for the powder making in mining, power, chemical industry, building materials, metallurgy, refractory materials, desulfurization of power plant, asphalt mixing station and highway industry, and the product size is adjustable in the range of 20 – 3250 meshes.

ZK Machinery can not only provide powder grinding plant with wide selection ranges, reasonable matching, reliable quality and high performance price ratio for customers, but also offer the overall design and construction scheme of grinding operation as well as the turnkey project of the grinding field.

The Configuration of Powder Grinding Plant:

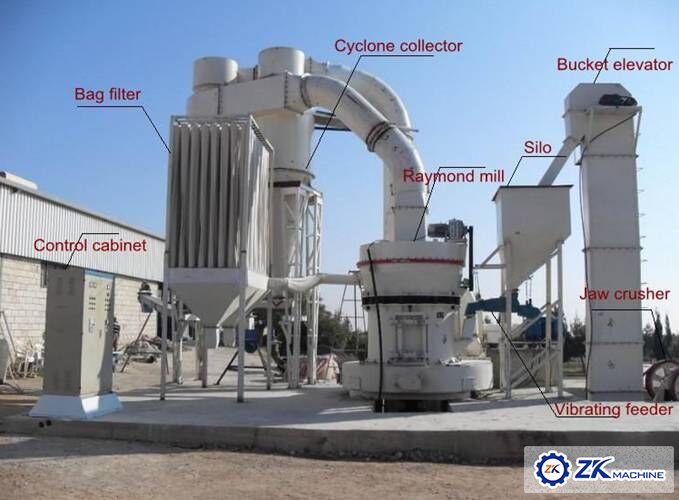

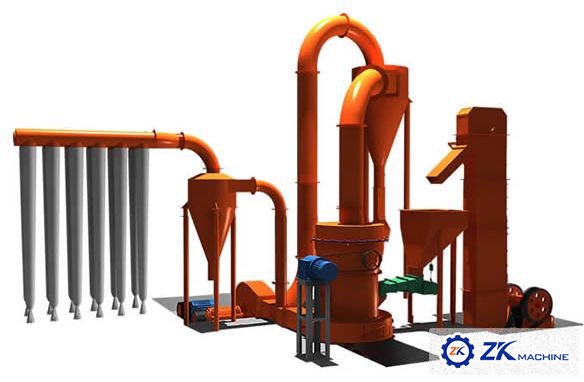

Powder grinding plant is usually composed of jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding machine motor, analysis machine (powder separator), auxiliary equipment, blower, centralized electronic device. It also can be configured with micro powder mill, high pressure grinding mill, ultrafine mill, Raymond mill, tricyclic medium-speed micro powder mill or vertical mill according to the different needs of customers.

Application Ranges of Powder Grinding Plant:
It is often used for the grinding and processing of materials in metallurgical, building materials, chemical industry and mining industry, which is suitable for feldspar, calcite, talc, barite, fluorite, rare earth, marble, ceramic, bauxite, manganese ore, phosphate rock, red iron oxide, quartz sand, cement clinker, activated carbon, coal gangue, clay, gypsum, silicon carbide, refractory materials and other non flammable and explosive mineral powder materials with below level 8 Mohs hardness and less than 6% humidity.

Features

It has rational structure design, which has strong adaptability to materials; wide application ranges; the configuration has great flexibility and high yield; the material has short staying time in the mill, so as to reduce the duplication of milling; low energy consumption, stable product quality.

The equipment adopts high quality material, which has abrasion resistance, long service life, strong ability to adapt to the environment; it has open layout, which has high degree of automation, convenient operation, low noise, and the system works under negative pressure without pollution to the environment.

Parameter

Grinding mill YGM75 YGM95 YGM130 YGM160 YGM190
Main Equipment Capacity  0.8-1.5 t/h 2.5-4 t/h 4.5-7 t/h 7-11 t/h 11-15 t/h
Grinding mill Power Main Grinder 18.5 45 90 132 185
Blower 15 37 90 132 185
Classifier 2.2 5.5 7.5 15 22
Jaw Crusher Model PE150X250 PE200X350 PE250X400 PE250X750 PE250X750
Power(Kw) 5.5 7.5 15 22 22
Input size (mm) ≤130 ≤150 ≤210 ≤210 ≤210
Output size (mm) 15-45 15-55 25-60 25-60 25-60
Elevator Model T210 T210 T250 T315 T400
Power(Kw) 3 3 3 4 4
Feeder Model GZ-2 GZ-4 GZ-4 GZ-5 GZ-5
Power(Kw) 0.15 0.45 0.45 0.65 0.65
Silo According to the actual situation,we choose the suitable size for you.
