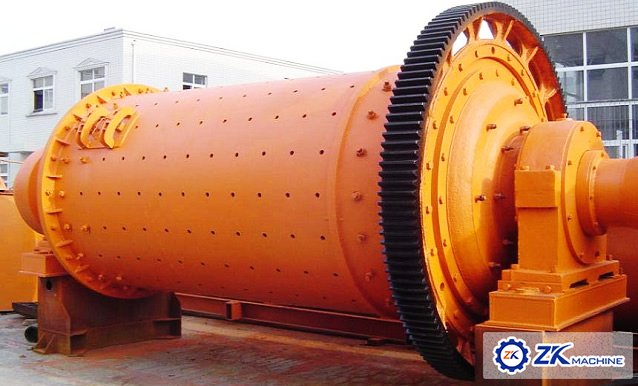

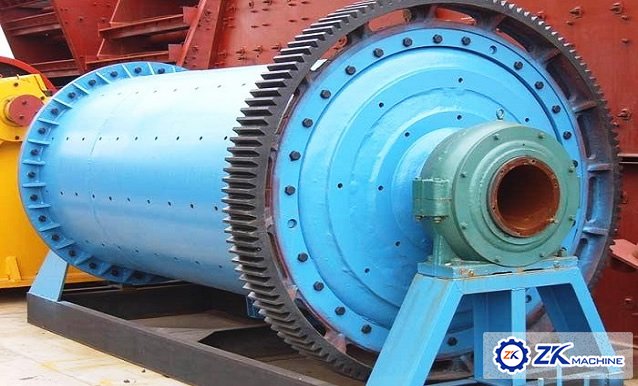

Rod Mill

Capacity: 0.62 – 250 (t/h)



Cylinder Diameter: 900 - 3600 (mm)



Applied material: Ore, coal, cement, slag, etc.



Application: Ore Dressing Line, Grinding Plant

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

MBS series rod mill use steel rod as grinding media, it is mainly used for ore processing, suitable for non-ferrous metal and non-metallic mineral resources, compared to the general grinding equipment, the most notable feature is the steel rod in the interior of MBS type rod mill contact the material was linear, this can ensure that the equipment has a certain selective grinding effect, through MBS type rod mill grinding materials have more uniform particle size, will not appear over powder phenomenon in the process of grinding, improve the overall application value of the finished material.

Rod mill is widely applied in metal and nonmetal mine, water conservancy, glass and construction materials industries, mainly suitable for grinding various ores and rocks and artificial sand-making. Our high-efficiency rod mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it has advantages of even discharging size and high capacity.



Our Service:
Packaging & Delivery


Technical Support

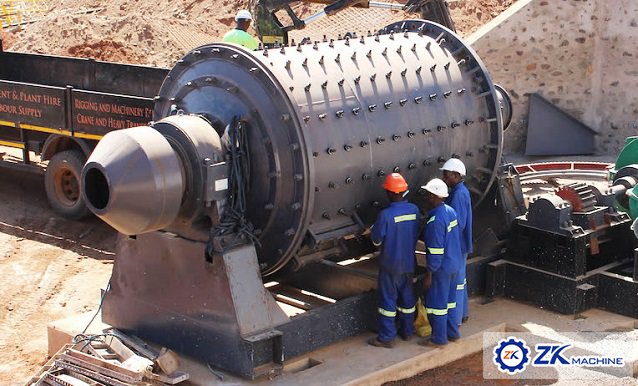

Successful Cases


Features

1.The discharging granularity of rod mill is evener and the output is higher.

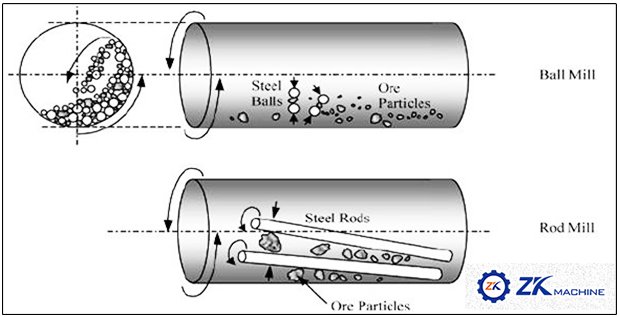

2.The grinding media contact with the ore in a linear manner, so that it has selective grinding function.

3. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification.

Parameter

Model Cylinder
Diameter
(mm)
Cylinder
Length
(mm)
Motor Model Motor
Power
(kW)
Motor Rotating
Speed
(r/min)
Length
(mm)
Width
(mm)
Height
(mm)
Capacity
(t/h)
Effective
Volume
(m³)
Weight
(kg)
MBY 0918 900 1800 Y225M-8 22 730 4980 2370 2020 0.62~3.2 0.9 5700
MBY 0924 900 2400 Y250M-8 30 730 5670 3280 2020 0.81~4.3 1.2 5880
MBY 1224 1200 2400 Y280M-8 45 730 6450 2800 2500 0.4~4.9 2.28 12308
MBYg 1530 1500 3000 JR117-8 80 725 7253 3070 2280 2.4~7.5 5 21210
MBYg 2130 2100 3000 JR136-8 180 735 8122 4220 3073 14~35 9 42123.5
MBYg 2136 2100 3600 JR137-8 210 735 8958 4320 3025 43~61 10.8 45800.5
MBYg 2736 2700 3600 JR158-8 380 743 10764 5750 3620 32~86 17.7 90441
MBY 2740 2700 4000 TDMK400-32 400 187.5 12300 5700 4700 43~110 20.4 75000
MBY 3040 3000 4000 JR1510-8 570 740 9800 3900 3900 54~135 26 90000
MBY 3245 3200 4500 TDMK800-36 800 167 14600 7000 5300 64~180 31 113000
MBY 3645 3600 4500 TDMK1250-40 1250 150 15200 8800 6800 80~230 41.8 139000
MBY 3654 3600 5400 TDMK1600-40 1600 150 15900 8800 6800 100~250 49.7 150000
