Vertical Roller Mill

Grinding Disc Dia: 1870 - 4560 (mm)



Output: 20 - 240 (t/h)



Applied material: Quartz, cement, coal, limestone, etc.



Application: Powder Plant, Cement Production Line, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

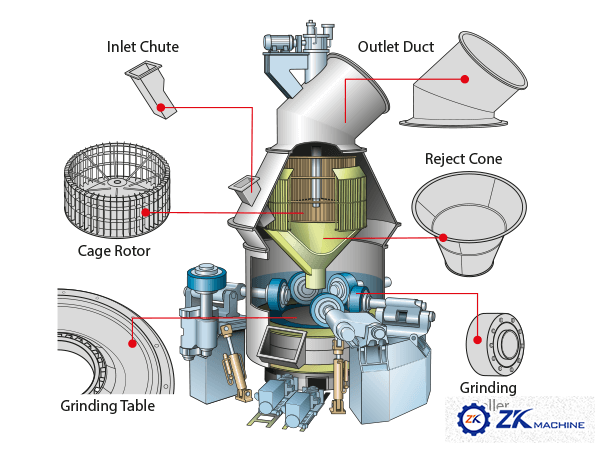

Vertical roller mill is a new type of grinding equipment, is an ideal device that integrates crushing, drying, grinding, and grading conveying all together. It features compact structure, low noise, high productively, low electrical power consumption and less metal loss.

The high and new technical vertical roller mill designed by our company, can be widely used in cement, metal, metallurgy, electricity, mining,chemical and other fields.

Features

1. We are professional producer of Raymond Mill in China.

2. Powder-saving and Higher Production Capacity (1-40T/H).

3. Smooth and Reliable Performance.

4. Fineness: 30—425Mesh (Adjustable).

5. Run for 1000 hours without Lubrication.


Parameter

Model Capacity (t/h) Geometric diameter of grinding disc (mm) Grinding disc track diameter (mm) Raw material moisture (%) Raw meal fineness (%) Raw meal moisture (%) Main motor power (kW)
ZKRM1300 20-25 1870 1300 <10% R0.08≤12% ≤1% 200
ZKRM1500 26-34 2180 1500 <10% R0.08≤12% ≤1% 280
ZKRM1700 40-50 2400 1700 <10% R0.08<12% ≤1% 400
ZKRM1900 60-70 2680 1900 <10% R0.08<12% ≤1% 500
ZKRM2200 85-110 2900 2200 <10% R0.08<14% ≤1% 800
ZKRM2400 95-130 3140 2400 <10% R0.08<14% ≤1% 900
ZKRM2800 120-160 3300 2800 <10% R0.08<14% ≤1% 1250
ZKRM3400 190-240 4560 3400 <10% R0.08<15% ≤1% 1800

Note: Grindability of raw materials (bond) Index ≤12kWh/t。
