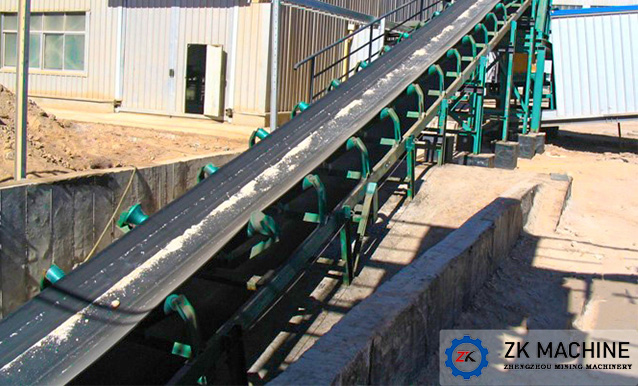

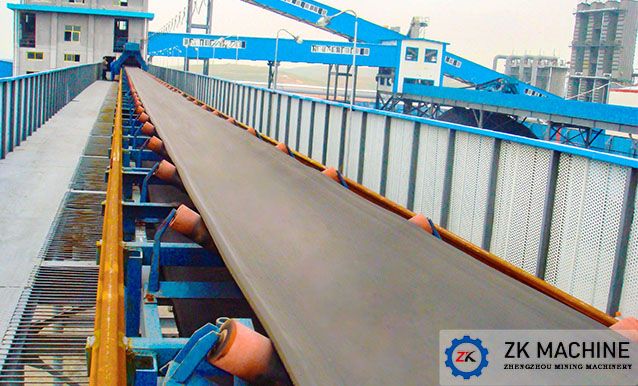

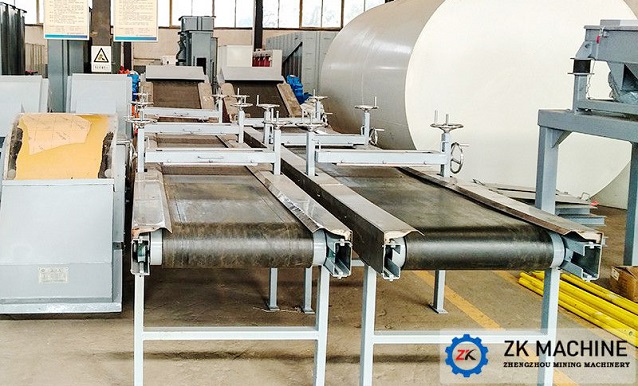

TD75 Belt Conveyor

Model: TD75-500 -- TD75-1000



Width: 500 - 1000 (mm)



Conveying Length: 2 - 240 (m)



Application: Sand, stone, limestone, ore, sludge, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

TD75 Belt Conveyor is used to convey bulk material or packed product, it is used widely in metallurgy, mine, building, transportation, light & textile, hydropower and harbors industries and departments and used to convey scattered and block materials.

Belt Conveyor can work single or several unit or work together with other conveyors form horizontal conveying system or inclined system. Its working temperature is between -25℃~40℃, it requires conveying material should not exceed 60℃, heat-resistance belt can convey material below 120 ℃. If material temperature higher than this, belt conveyor is not suitable. It should use oil resistance, or acid and bases proof rubber belt or plastic belt when it convey grease material or material has property of acid, bases etc.

Product   Name Belt conveyor
Material stainless steel / carbon steel
Color As requirements.
Standard B500, B650, B800, B1000, B1200, B1400
Length As requirements, max. length can be 500m
Power As requirements.
Capacity As reguirements.
Used building industry machinery, cement machinery, mining factory.

Features

1. Wide range of conveying material, it can convey wet, dry, powdery or lump material or packed product.

2. Big conveying capacity and long conveying distance.

3. It even can realize multipoint load material and discharge.

4. Stable running, small noise.

5. Simple structure, reliable working, easy operation, easy installation and maintenance.

Parameter

Model

Rubber Belt

Conveying

Length
(m)

Diameter of Driving Drum
(mm)

Max Feeding Size
(mm)

Capacity
(m³/h)

Power

(kW)

Width (mm)

Speed (m/s)

Inclined (°)

TD75-500

500

0.8~2.5

10~20°

2~240

400、500、630

100

69~217

1.5~30

TD75-650

650

0.8~2.5

10~20°

2~240

400、500、630

150

127~397

1.5~45

TD75-800

800

0.8~3.15

10~20°

2~240

400、500、630

200

198~781

2.2~75

TD75-1000

1000

0.8~3.15

10~20°

2~240

500、630、800

300

324~1622

7~100
