Briquetter



Model: LYQ0.5 - LYQ10



Roller diameter: Φ299 - Φ858 (mm)



Capacity: 500 - 10000 (kg/h)



Application: iron, coal, aluminum powder, gypsum, sludge, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

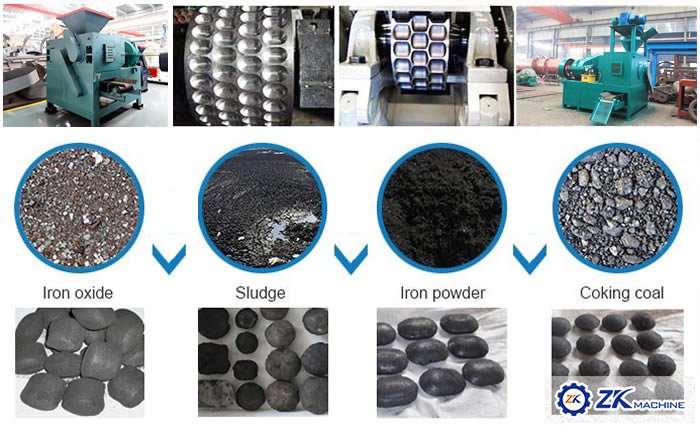

The Briquetter can be used for pressing clay, lime, iron oxide, iron, coal, coke, aluminum powder, gypsum, tailings, toner, charcoal powder, slag, sludge, kaolin, activated carbon, coke powder and other powder, waste residue to control dust emission or to make it more convenient for transportation. It is widely used in power plants, metallurgy, refractory, chemical, energy, transportation, heating and other industries.

Features

The Briquette machine production is after the molding material, which is energy saving and environmental protection, convenient transportation, improving the utilization rate of waste. It has good economic benefit and social benefit.

Parameter

Model

Roller dia.

No. of pit

Roller width

Capa
(kg/h)

Main  motor  power

(kW)

Pre-press  motor  power

(kW)

LYQ0.5

Ф299

108

180

500

18.5

7.5

LYQ1.0

Ф367

200

183

1000

37

11

LYQ1.5

Ф367

200

183

1500

45

15

LYQ2.0

Ф399.5

240

252

2000

45

15

LYQ3.0

Ф522

300

196

3000

55

15

LYQ5.0

Ф738 Ф700

504 560

210 225

5000

75

18.5

LYQ6.0

Ф738

504

220

6000

90

18.5

LYQ8.0

Ф758

616

225

8000

110

18.5

LYQ10

Ф858

1000

300

10000

132

18.5
