ZK Granulator

Total Installed Power: 110 kW



Size: 2520*1720*2590 mm



Pelletization Rate: ≥ 90%



Application: Converting powdered materials into uniform, round pellets

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

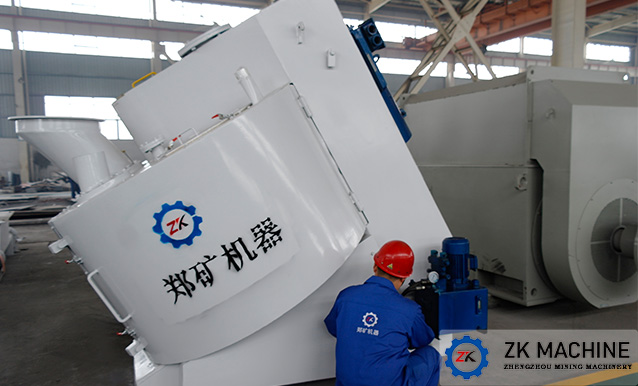

ZK-15 New Type Granulator is a main equipment which converts powdered materials into uniform, round pellets, widely applied in ceramic sand, iron and steel and chemical industry. The applied material includes chemical powders, limestone, gypsum,cement/lime dust, flyash, minerals and ores etc.

At present, traditional disc granulator is mainly used in the domestic ceramic sand production. The price of this kind of equipment is low, but its capacity is small, pelletization rate is low and added ingredient is required. Especially, it leads to severe dust pollution, occupies a large plant area and labor intensity is large. Under the trend of increasingly high requirements and strict management of environment and labor protection in our country, it has become an inevitable choice for the healthy development of industry to eliminate this kind of granulating equipment out of time.

Aiming at the urgent demands of technological upgrading in domestic ceramic sand industry, Henan Zhengzhou Mining Machinery Co.,Ltd.has successfully developed a similar kind of advanced granulator by the way of collaborative research and innovation. It is capable of fully meeting the requirements for clean and efficient production of a variety of ceramic sands.

Features

1. Highly Effective and Clean Granulating System

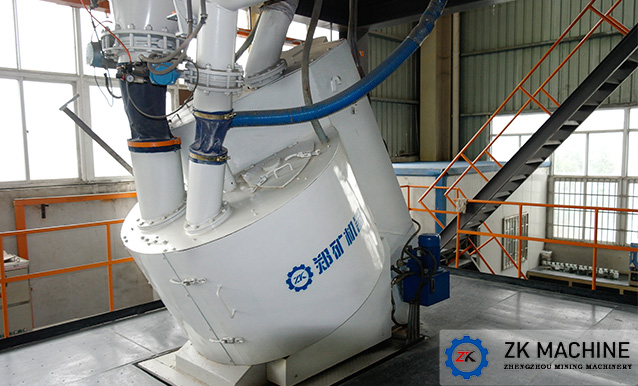

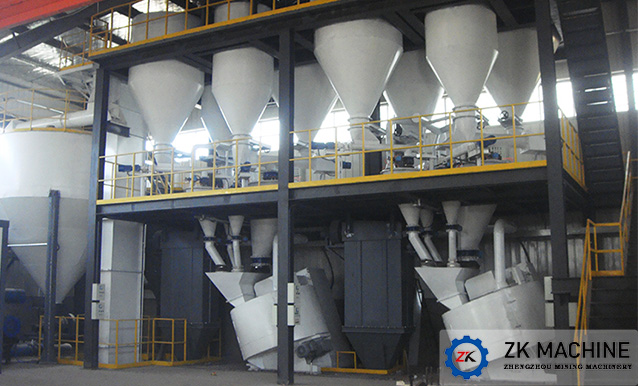

ZK-15 granulator is composed of main hopper, reversible spiral, main measuring bin and auxiliary measuring bin, constant dosing water tank, powder recycling processor, air fan, granulating host and complete control system.

2.Sample Products of ZK-15 New Type Granulator
After 8000 times of trial production as long as six months, ZK-15 granulator developed by Henan Zhengzhou Mining Machinery Co.,Ltd.has achieved mixing uniformity of 99.9%, pelletization rate 16-80 mesh ≥ 90%,discharging every 5-10 minutes.

Parameter

Specification

ZK-15  Granulator

Diameter 1.2m

Disk Granulator

Diameter 1.7m

Disk Granulator

Diameter 2.5m

Disk Granulator

Diameter 3.2m

Disk Granulator

Diameter 3.5m

Disk Granulator

Diameter 4.2m

Disk Granulator



1

4

1

50

1

20

1

12

1

6

1

4

1

3

Capacity (t/h)

2.5

10

0.2

10

0.5

10

1

10

2.5

10

2.8

10

3.5

10

Working System (h)

24

24

24

24

24

24

24

24

24

24

24

24

24

24

Annual Working Days
(d)

300

300

300

300

300

300

300

300

300

300

300

300

300

300

Annual Capacity (t/a)

18000

72000

1440

72000

3600

72000

7200

86400

18000

72000

20160

72000

25200

72000

Power (kW)

90

360

11

550

15

300

45

540

75

450

75

300

90

270

Electric Consumption

(kW/t)

36

36

55

55

30

30

45

45

30

30

25

25

25.8

25.8

Coverage (m2)

25

100

9

450

16

320

18

216

32

192

32

128

40

120

Product Size (mesh)

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

16/80

Human Resource

(People)



3



50



27



24



16



12



9

Product Market Price

(RMB/t)

3800

2800

2800

2800

2800

2800

2800

Equipment Investment

(ten thousand RMB)

40

160

2.5

125

7

140

12

144

18

72

22



28

84

More Plant Area (m2)



350

220

116

92

28

20

Workers Annual Salary

(ten thousand RMB)

10.8

180

97.2

86.4

46.8

32.4

21.6

Pollution

no

serious

serious

serious

serious

serious

serious

Automation

Total Automation

Manual Work

Manual Work

Manual Work

Manual Work

Manual Work

Manual Work
