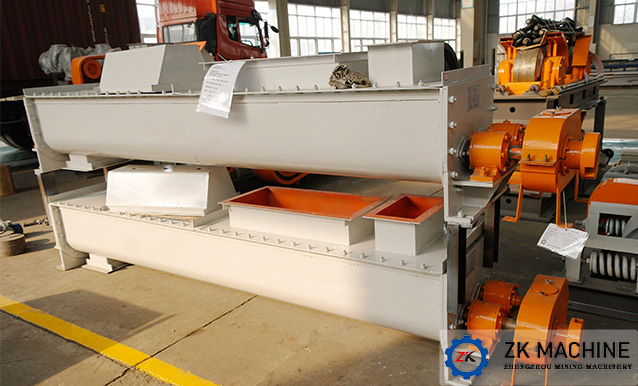

GX Screw Conveyor

Model: GX150 -- GX600



Max Capacity: 255.9 (m³/h)



Rov. Speed: 20 - 90 (r/min)



Conveying Material: Coal, slag, cement, clay powder, sand, grains, gravel, scrap iron, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

GX Type Screw conveyor is a kind of continuous conveying equipment without flexible traction mechanism. It mainly used to convey all kinds of powdery, granular bulk materials, such as clay powder, coal, cement, sand, grains, and small lump coal, gravel, scrap iron etc. But not suitable for sticky agglomerate, perishable materials.
Screw conveyor has horizontal and inclined arragement. It can work with other conveying device to complete the concentrated transportation, distribution, agitation, mixing, dehydration, dosing, unload, stacking operation etc.

Features

1. It achieved clean and environmentally friendly production, especially suitable for conveying dusty, hot (under 200 ℃) and sharp odour material.

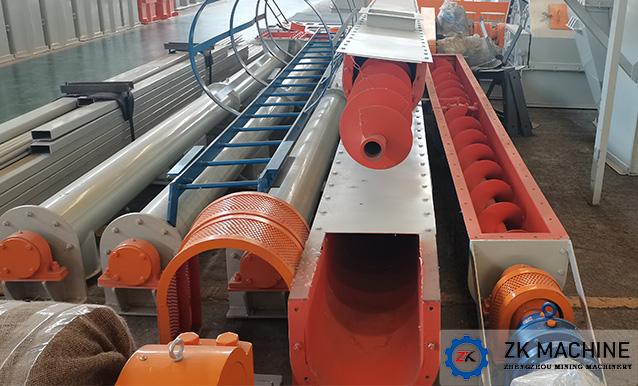

2. The wear treated screw is more wearable and stronger than traditional common screw. It can significantly increase the service life of the screw
3. It can achieve multi-point feeding and multi-point discharging according to user's process layout.
4. The redesigned discharging structure makes the discharging smoother.
5. Compact structure, less wearing parts, convenient to install, operate and maintain.

Parameter

Model

Screw dia.

(mm)

Pitch

(mm)

Rev. Speed

(r/min)

Capacity

(m³/h)

Conveying Distance
(m)

GX200

200

200

5090

712

215

GX250

250

200

4590

1020

220

GX300

300

300

4080

1530

220

GX400

400

300

3570

2555

225

GX500

500

400

3565

4590

225

Wearing Parts List

No.

Name

Quantity

No.

Name

Quantity

1

Screw Blade

1

4

Shaft

4

2

Bearing

2

5

Transmission Shaft Coupling

1

3

Nylon Pin

8

6

Reducer Coupling

1
