Introduction

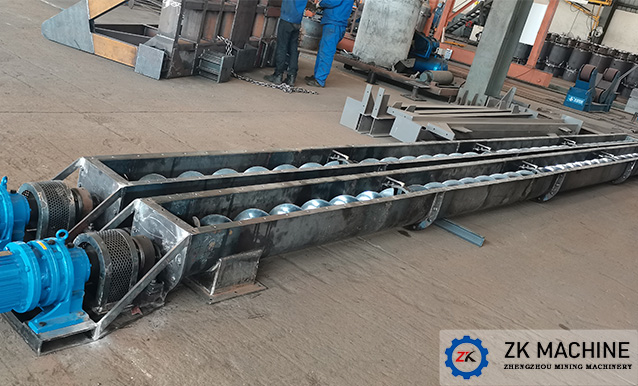

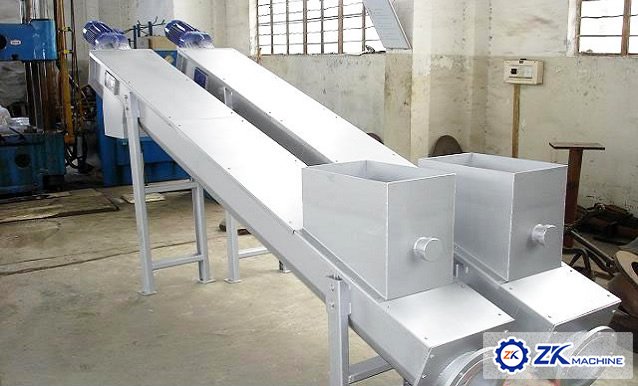

LS screw conveyor is the updated model of the GX type screw conveyor. The whole conveyor is reliable, durable, adaptable, easy to install. It is suitable for conveying the powder, granular, and block materials (temperature <200℃), such as coal powder, coal ash, argil, sand, cement, carbamide etc. The screw conveyor is not only used for the concrete batching plant, bituminous concrete batching, but also for the chemical, building, mineral, cement, metallurgy and so on.

Features

1. It achieved clean and environmentally friendly production, especially suitable for conveying dusty, hot (under 200 ℃) and sharp odour material.

2. The wear treated screw is more wearable and stronger than traditional common screw. It can significantly increase the service life of the screw

3. It can achieve multi-point feeding and multi-point discharging according to user's process layout.

4. The redesigned discharging structure makes the discharging smoother.

5. Compact structure, less wearing parts, convenient to install, operate and maintain.

Parameter

Model	Screw dia  (mm)	Pitch  (mm)	Max Rev.Speed  (r/min)	Capacity  (m³/h)	Conveying Distance  (m)
LS200	200	200	50～90	7～12	2～15
LS250	250	200	45～90	10～20	2～20
LS300	300	300	40～80	15～30	2～20
LS400	400	300	35～70	25～55	2～25
LS500	500	400	35～65	45～90	2～25
Wearing Parts List：
No.		Name		Quantity
1		Flight		1
2		Bearing		2
3		Nylon Pin		8
