O-Sepa Powder Separator

Model: N350 -- N5000



Air Volume: 350 - 5000



Type: O-Sepa Classifier



Application: Cement Production Plant, Coal Grinding Unit

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

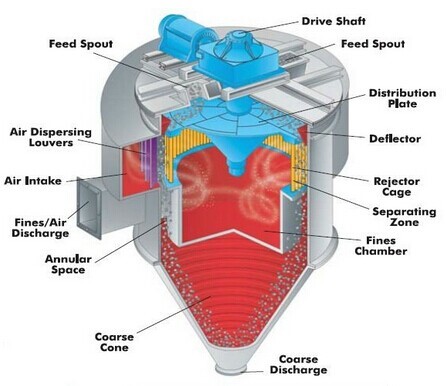

Powder Separator is high-efficiency dynamic classifier of the third generation, which has been widely applied in the powder grinding system of the cement companies. The improved O-Sepa classifier is a kind of high-efficiency classifier developed on basis of the technology of common O-Sepa classifier and using the most advanced technology in the world.
The rotor blades of special shape replace the rotor blades of the normal shape, which makes the classifying area of the classifier increase, with higher classifying efficiency of materials and better classifying effect in practice.

Features

1. Avoid the pressure drop generated by the vortex to lower the pressure drop of the classifier.

2. Transfer the energy produced due to airflow rotation to the rotor, thus reducing the drive’s power consumption and avoiding the energy consumption generated by the vortex at the same time.

3. The tangential velocity at the classifier outlet is reduced due to the use of the vortex scrambler and moreover the wear and tear is reduced.

4. The distribution of finished particles is more uniform, while the particle size ratio is more reasonable


Parameter

Model Cement  production The largest  volume of  feed Separator  air  volume Main  Motor Reducer
Model Power Model Ratio
N-350 12-25 45 350 Y160L-4 15 B2SV02B 5
N-500 18-35 90 500 Y180L-4 22 B2SV02B 5
N-750 27-54 135 750 Y200L-4 30 B2SV02B 5
N-1000 36-60 180 1000 Y225M-4 45 B2SV03B 5.6
N-1250 45-75 220 1250 Y250M-4 55 B2SV04B 5.6
N-1500 54-90 270 1500 Y280S-4 75 B2SV04B 6.3
N-2000 60-100 300 2000 Y280M-4 90 B2SV05B 6.3
N-2500 90-150 450 2500 Y315S-4 110 B2SV05B 7.1
N-3000 108-180 540 3000 Y315S-4 110 B2SV05B 7.1
N-4000 144-240 720 4000 Y315S-4 110 B2SV05B 7.1
N-5000 180-300 900 5000 Y315M-4 132 B2SV05B 7.1
