Cyclone Dust Collector

Exhaust Gas Volume: 1500 - 105000 (m3/h)



Collection efficiency: >95 (%)



Pressure drop: <900 (Pa)



Cut diameter: <900

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

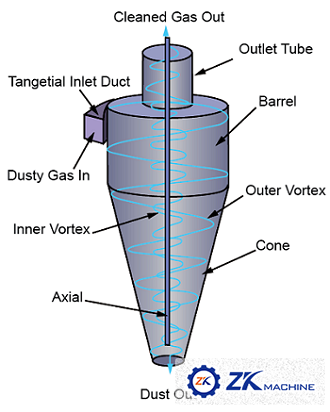

XFCC series cyclone dust collector also called the centrifugal dust collector, it is a dry gas-solid separator device that separates dust powder from air stream by using centrifugal force generated by revolving dust air. It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries, especially suitable for the initial purification for high temperature flue gas.

Cyclone dust collector is easy in structure and manufacturing and low in cost and running cost. It has high filtering efficiency for coarse dust particles that have a diameter more than 5 μm,but it has low filtering efficiency for fine dust particles that have a diameter less than 5 μm(especially fine dust particles with low density). So cyclone dust collector is often used for preliminary treatment on coarse dust powder purification or multi-stage purification.

Application of Cyclone dust collector:
It is used in ventilation dust removal and material recycling system of mining, metallurgy, refractory, coal, chemical and electric power industries.

Features

1. Suitable for purification the dust with big density, and particle size above 5 micron; not suitable for purification the dust with strong cohesiveness.

2. No moving parts, easy to management and maintenance.

3. Under the same air volume processing, it small volume, simple structure and low cost.

4. Many set machines work together in parallel with same air volume processing, small volume, simple structure and low cost.

5. It can be resisted 400℃ high temperature, if adopts special high temperature resistance material, it will resist higher temperature than 400℃.


Parameter

Item Model Inlet wind speed (m/s)
12 15 18
Air volume
(m³/h)
XFCC300 670 830 1000
XFCC400 1180 1480 1780
XFCC500 1860 2320 2780
XFCC600 2670 3340 4000
XFCC700 3630 4540 5440
XFCC800 4750 5940 7130
XFCC1000 7990 10000 12000
XFCC1200 11600 14600 17500
XFCC1500 17000 21260 25500
XFCC2000 30000 37800 45300
XFCC2500 47300 59000 70900
XFCC300X2 1340 1660 2000
XFCC400X2 2360 2960 3560
XFCC500X2 3720 4640 5560
XFCC600X2 5340 6680 8000
XFCC700X2 7260 9080 10880
XFCC800X2 9500 11880 14260
XFCC1000X2 15980 20000 24000
XFCC1200X2 23200 29200 35000
XFCC1500X2 34000 42520 51000
XFCC2000X2 60000 75600 90600
XFCC2500X2 94600 118000 141800
XFCC300X4 2680 3320 4000
XFCC400X4 4720 5920 7120
XFCC500X4 7440 9280 11120
XFCC600X4 10680 13360 16000
XFCC700X4 14520 18160 21760
XFCC800X4 19000 23760 28520
XFCC1000X4 31960 40000 48000
XFCC1200X4 46400 58400 70000
XFCC1500X4 68000 85040 102000
XFCC2000X4 120000 151200 181200
XFCC2500X4 189200 236000 283600
