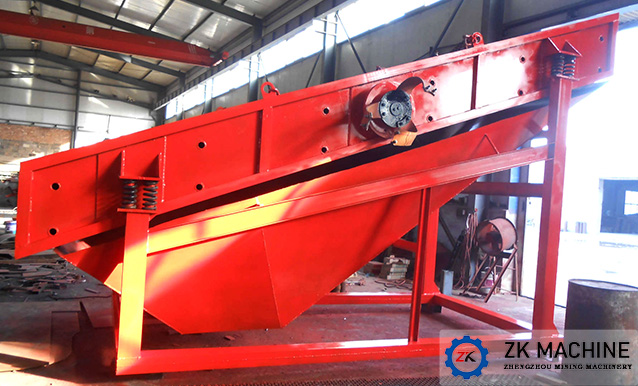

YA Circular Vibrating Screen

Screen Layer: 1 - 2



Screen area: 7.5 - 14 (m2)



Capacity: 150 - 1200 (t/h)

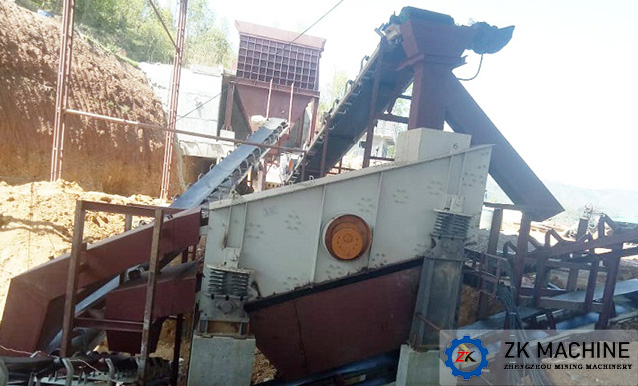

Applied material: Ore dressing line, building material crushing and screening plant

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

YA Vibrating screen use axis eccentricity as exciting force, which make screen body move approximate circularly. It has high screening efficiency, large process volume. It can be used screen various dry granulate material and small lump material. It has heavy and light type. The screen can be single layer, double, multilayer. Screen mesh can use metal wire mesh, rod, cast, welding, punching hole according material property.

Application:
It is used for classifying granulate material and small lump material in Ore dressing, building material, electricity, chemical engineering.

Features

1. Motor and vibration exciter use belt drive, stable running and less impact for motor

2. High screening efficiency, large process volume.

3. Screen mesh is Wear Resistance, fatigue resistance, high classification precision.

4. Use steel spiral spring as damping device, reliable performance, long service life.

5. Use axis eccentricity as exciter, strong exciting force, which can make stuck material jump out, avoid mesh block.

6. Angle of screen mesh can be change to control process volume.

Parameter

Model Screen Mesh Feeding Size
(mm)
Capacity
(t/h)
Vibrating Frequency
(r.p.m)
Power
(kW)
Weight
(kg)
Lay area (㎡) Mesh Size (mm)
YA1848 1 7.5 6~50 ≤200 150~525 845 15 6289
2YA1848 2 7.5 6~50 ≤200 150~525 845 15 6945
YAH1848 1 7.5 30~150 ≤50 250~1000 755 13 7122
2YAH1848 2 7.5 30~150 ≤400 250~1000 755 15 7740
YA2148 1 10 6~50 ≤210 180~630 748 18.5 9287
2YA2148 2 10 6~50 ≤210 180~630 748 22 10532
YAH2148 1 10 13~200 ≤400 270~1200 708 18.5 10430
2YAH2148 2 10 30~150 ≤400 270~1200 708 22 11190
YA2160 1 12 6~50 ≤200 230~800 748 18.5 9926
2YA2160 2 12 6~50 ≤200 230~800 748 22 11249
YAH2160 1 12 30~150 ≤400 350~1500 708 30 12490
2YAH2160 2 12 30~150 ≤400 350~450 708 30 13858
YA2448 1 11 6~50 ≤200 200~700 748 18.5 9834
YAH2448 1 11 6~50 ≤400 310~1300 708 30 11830
2YAH2448 2 11 30~150 ≤400 310~1300 708 30 13012
YA2460 1 14 6~50 ≤200 260~780 748 30 12240
2YA2460 2 14 6~50 ≤200 260~780 748 30 13583
YAH2460 1 14 30~150 ≤400 400~1700 708 30 13096
2YAH2460 2 14 30~150 ≤400 400~1700 708 30 14420
