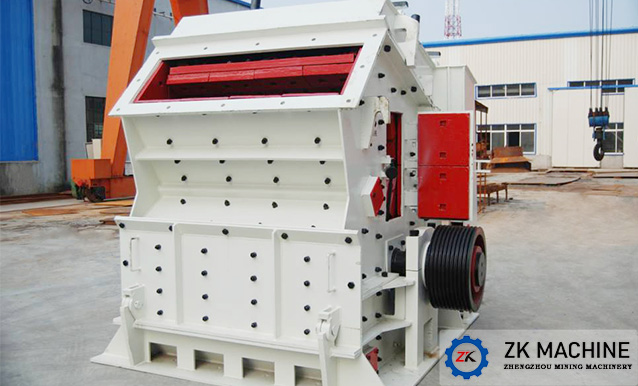

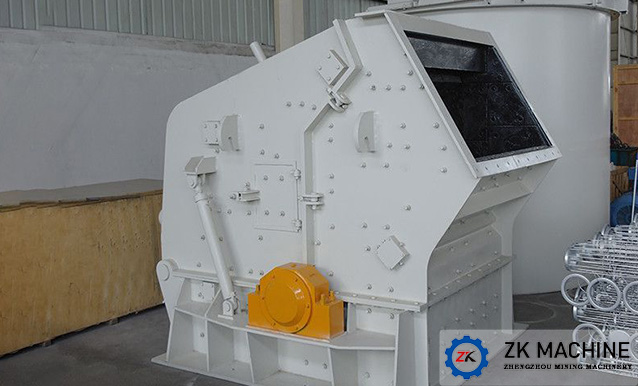

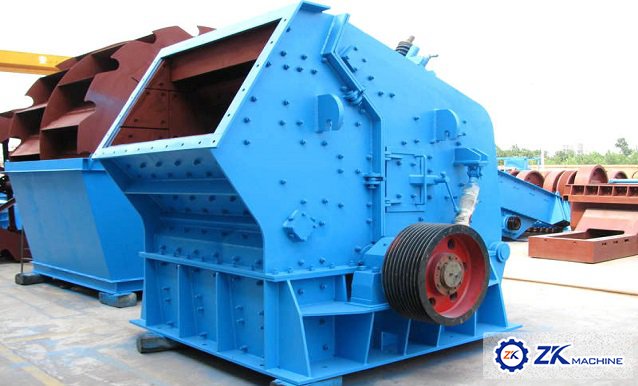

Impact Crusher

Capacity: 15 - 550 (t/h)



Inlet size: 400x730 - 830x2050 (mm)



Max feed size: 950 (mm)



Application: Ore, Stone, Building materials Crushing Plant

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

PF Series Impact Crusher is one kind of equipment to crushing the brittle material which compression strength no more than 350 Map, the advantage including high crushing ratio, uniform product grain and low over crushing, low energy consumption, high adjustment range of product grain size and optional crushing etc, which is mainly used in mine, metallurgy, cement, construction material, coal etc for secondary crushing and fine crushing the medium hardness material.

Features

1. Multiple chamber can make it evenly and suitable for crushing hard rock.;

2. Large low feed port makes it easy to layout production line and increase the feed size;

3. New wear-resistant material of the plate hammer, impact plate and liner can last longer life;

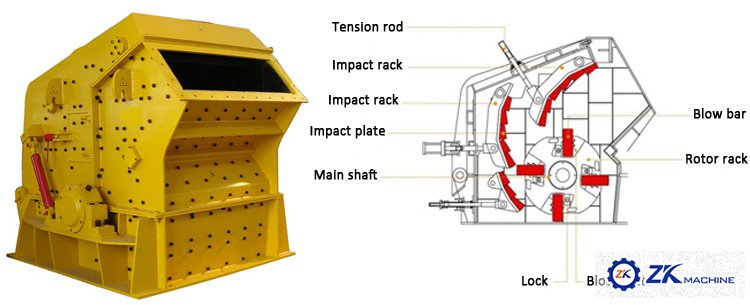

4. High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient;

5. The entire plate hammer structure makes the materials particle size more smaller and cube-shaped;

6. It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts.

Parameter

Model Specification Inlet size
(mm)
Max feeding size
(mm)
Capacity
(t/h)
Power
(kW)
Boundary size
(mm)
Weight
(t)
PF-0807 φ850×700 400×730 300 15~30 30~45 2210×1490×2670 8.1
PF-1007 φ1000×700 400×730 300 30~50 37~55 2400×1558×2670 9.5
PF-1010 φ1000×1050 400×1080 350 50~80 55~75 2400×2250×2820 12.2
PF-1210 φ1250×1050 400×1080 350 70~120 110~132 2690×2338×2890 14.9
PF-1214 φ1250×1400 400×1430 350 130~180 132~160 2690×2688×2890 18.6
PF-1310 φ1300×1050 490×1170 400 80~140 110~160 2780×2478×2855 16.2
PF-1315 φ1320×1500 860×1520 500 160~250 180~260 3096×3273×3067 19.3
PF-1415 φ1450×1500 1145×1520 950 220~450 220~315 3745×3022×3519 27
PF-1520 φ1520×2000 830×2050 700 300~550 315~440 3581×3560×3865 36.5
