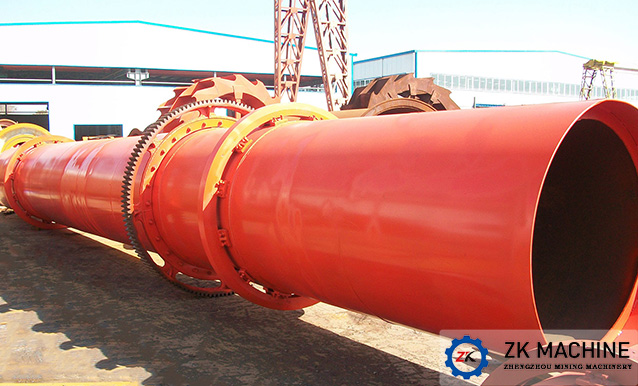

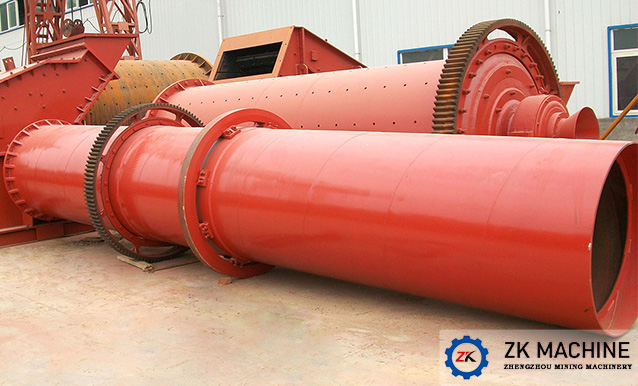

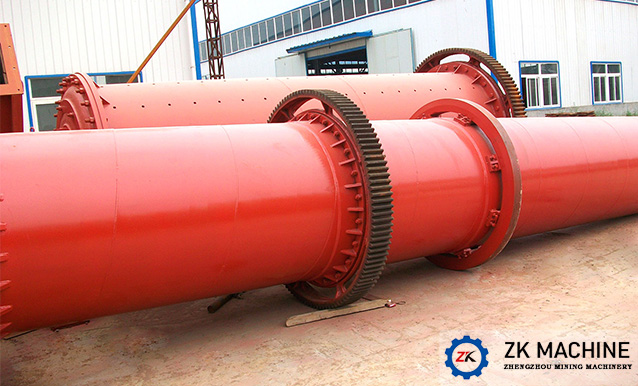

Slag Rotary Dryer

Capacity: 1 - 40 (t/h)



Powder: 7.5 - 132 (kW)



Slope: 3.5% - 5%



Applied material: slag, mineral powder, sludge, fly ash, coal powder, etc.

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

Blast furnace slag dryer  is defined as a device in which solids are dried while being transported along the interior of a rotating cylinder equipped with lifting flights to shower the solids through the hot gas. Through heat exchange, it is to r educe or minimize moisture content of the material it is drying. By bagasse drying machine, people could get the finished product which is suitable for packing, transportation, subsequent process, etc.

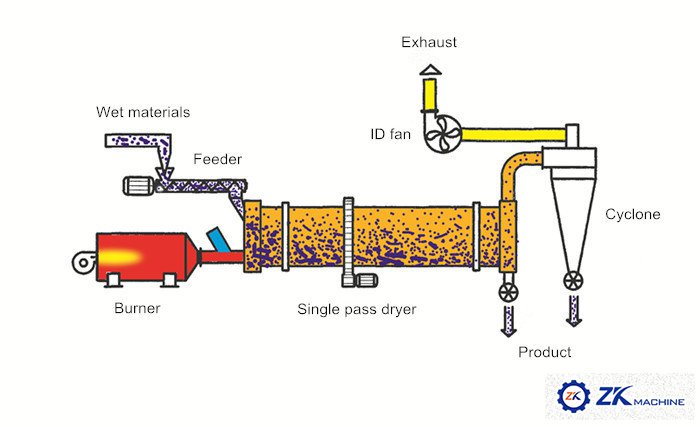

Flowchart Of Slag Dryers:


Features

1.largely increase heat transfer rate and vaporization rate;

2.vaporization capacity per hour is as much as 25-60 kg/m2, which is 1-2 times of traditional rotary dryer;

3.output is raised by 50% and fuel consumption is reduced by 30%;

4.drying efficiency is raised by 40%;

5.save 40% space and civil investment and 20%equipment investment.

Parameter

MODEL CAPACITY (t/h) SLOPE (%) GEARBOX MOTOR POWER (kW)
Ø1.0×10m 1-2 5 ZQ400 YCT200-4B 7.5
Ø1.2×12m 2-3 5 ZQ500 YCT225-4A 11
Ø1.5×15m 3-5 5 ZQ500 YCT225-4B 15
Ø1.8×18m 4-6 4 ZQ750 YCT250-4B 22
Ø2.0×20m 7-9 3.5 ZQ750 YCT280-4A 30
Ø2.2×22m 8-10 3.5 ZQ850 YCT315-4A 37
Ø2.4×24m 12-15 3.5 ZQ850 YCT315-4B 45
Ø2.8×28m 16-22 3.5 ZS145 YCT355-4A 55
Ø3.0×30m 20-25 3.5 ZS165 YCT355-4B 75
Ø3.2×32m 28-32 3.5 ZL130 YCT355-4C 90
Ø3.6×36m 38-40 3.5 ZL130 YVF2-315L2-6 132
