Cement Rotary Kiln

Model: Φ2.5×40 - Φ4.3×60 (m)



Capacity: 50 - 3000 (t/d)



Application: Calcining cement clinker



Service: Design, Manufacture, Installation, Training

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

Rotary kiln is a pyroprocessing device used to raise materials to a high temperature to calcine the materials in a continuous process. Cement rotary kiln is used for calcination clinker from limestone, clay etc to produce cement.

Materials produced using rotary kilns include: Cement clinker, Limestone, Metakaolin, Titanium dioxide, Alumina, Iron ore pellets, etc. Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc.

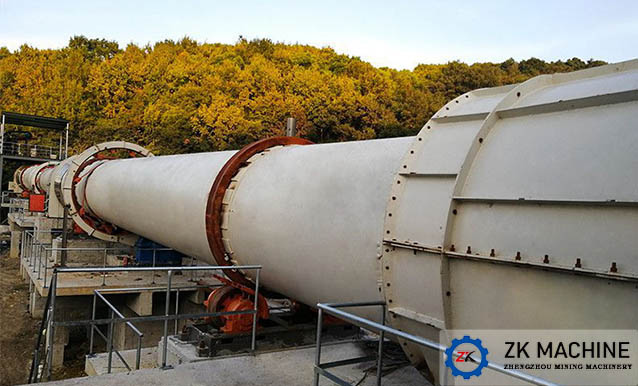

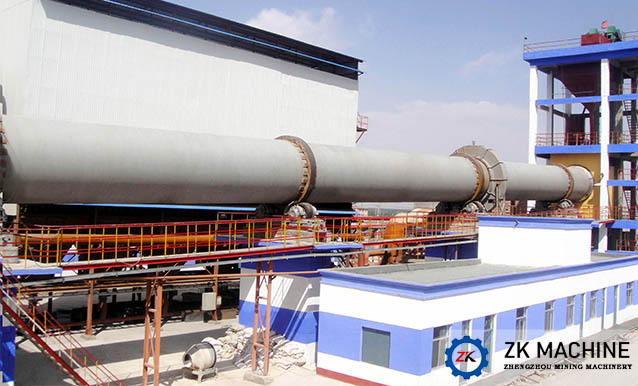

The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. the kiln body has a certain tilt angle with level. The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.


Features

1. Cement rotary kiln adopts adjustable speed driving with high efficient and low power consumption.

2. The fuel consumption of unit product is low and large capacity.

3. Stable mechanical performance and transmission, accurate speed control and easy control the calcination temperature.

Parameter

Specifications
(m)
Kiln dimensions Capacity
(t/d)
Rotation speed
(r/min)
Motor power
(kw)
Total weight
(t)
Note
Diameter (m) Length (m) Obliquity (%)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 Kiln with shaft cyclone preheater
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 ----
Φ2.5×54 2.5 54 3.5 204 0.48-1.45 55 196.29 ----
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ----
Φ2.8×44 2.8 44 3.5 400 0.437-2.18 55 201.58 Outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ----
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 Outside disassemble kiln
Φ3.0×60 3 60 3.5 300 0.3-2 100 310 Alumyte-alumina forge kiln
Φ3.2×50 3.2 50 4 1000 0.6-3 125 278 Outside disassemble kiln
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 Kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 Kiln with preheater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating kiln for using ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 Kiln with preheater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 Kiln with preheater precalcine
Φ4.2×60 4.2 60 4 2750 0.4-3.98 375 633 Kiln with preheater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 Kiln with preheater precalcine
