Structural Features of Pan Granulator
Date:2023-03-10 13:14:21
Author:admin
Views:
78

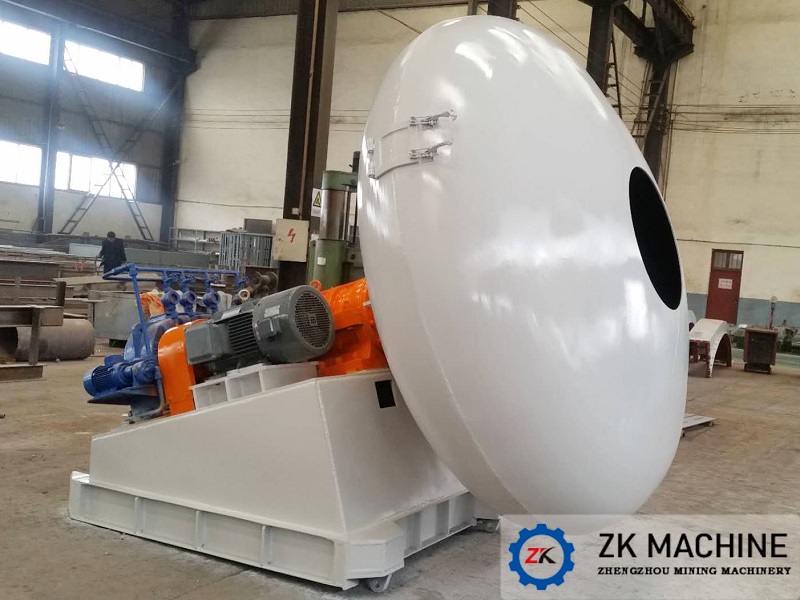

The pan granulator is a granulation equipment produced by our company. It can make mixed materials into particles with uniform particle size, such as clay, fly ash, bauxite and other powders.
Its transmission device drives the pan to rotate through the bridge device, and the axis of the pan is at a specific angle with the horizontal plane; when the powder is added to the pan through the feeding port, it starts to spray water into the pan, and the wet powder is tumbling. At the same time, the ball core is gradually formed, and the wet ball core gradually grows into particles under the continuous rolling, friction and collision. When the particle size reaches the requirement, it is unloaded through the discharge door.
Structural features of the equipment:
1. High pelleting rate, uniform particle size and high strength of finished pellets.
2. Adopt frequency control motor, easy to adjust the speed according to the process needs.
3. The mating surface of the frame is formed by a large boring and milling machine at one time, which ensures the assembly accuracy requirements of the equipment and improves the running stability of the whole machine.
4. The specially customized reducer ensures that each bearing of the reducer can be lubricated evenly and fully under the inclined state, which can significantly improve its service life.
5. The layout of the whole machine and the structure of the granulating pan are optimized, so that the dust pollution is greatly reduced, and the operation and maintenance are also more convenient.
6. Strong adaptability of raw materials, high production efficiency and stable product quality.
The base of the pan granulator produced by our company adopts an integrated structure design, which is stable in operation, low in noise, low in failure rate, long in service life, high in pelletizing rate, uniform in pellet size, easy to control in pellet size, and high in strength. The production efficiency is high, which has been recognized and praised by many users.
