Introduction

We can provide a rotary drum dryer for many industrial drying application. We have been manufacturing and installing dryers for many years, and have the knowledge and experience required to provide a cost effective drying solution that not only works but works well.

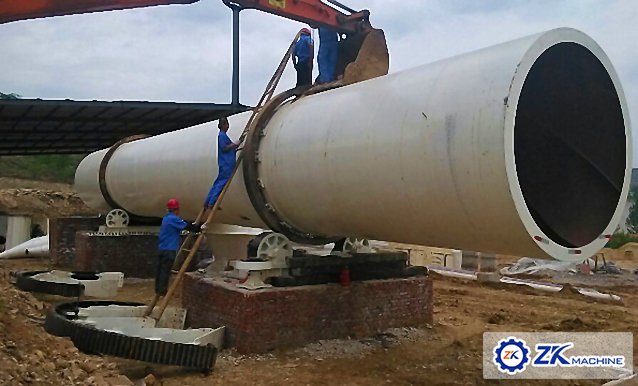

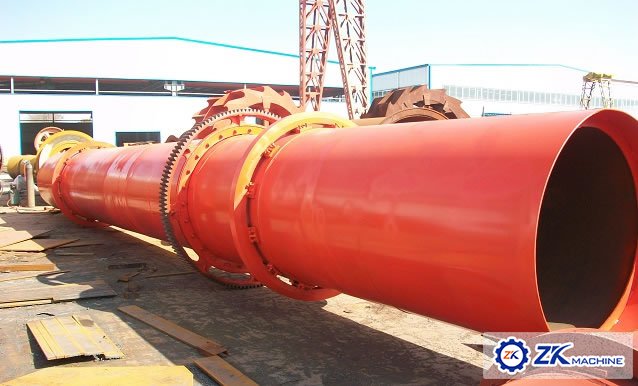

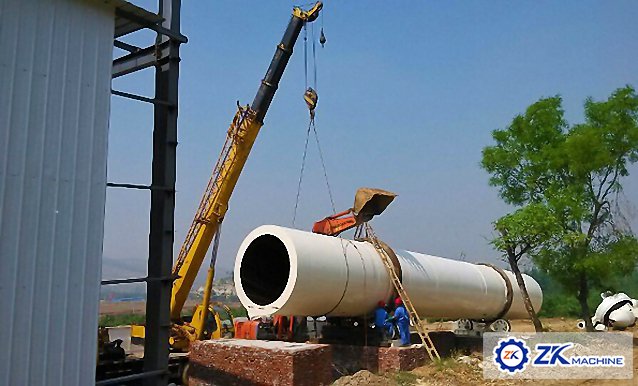

Sludge rotary drum dryer is widely used to dry materials in industries like coal, sludge, mine, construction, chemical, ceramsite, etc. Thermocouples are installed in feeding and discharging units to control temperature. Temperature change of the dryer also can be indicated by the thermometer, which is convenient for temperature control inside the dryer ( it’s usually 250-350 ℃).

Applications:
Powder & particle: Limestone, ore, clay, mineral filter cake, coal, iron sulphate, fly ash, gypsum etc.
Damp and sticky material: Coal slime, sewage sludge, bentonite, kaolin etc.
Corrosive material: Slag etc.

Why choose us?
1. International standard with ISO, CE certificate
2. Simple system, safe and easy operation
3. Flexibility in fuels used (NG, Oil, Coal ect.)
4. Year of experience with all types of dryers
5. Capable of installation anywhere in world
6. In house engineering for custom fit applications
7. Proven design

Features

1.Smart control & One-step operation. The operation parameters is under automatic control to ensure the best running condition and moisture stability of dry materials.

2.Impurities self-removal. Iron dust and other impurities are cleaned and would not enter the following process.

3.The insulation effect of drum is as high as 70% (35% for traditional product), raising the heat efficiency by 30%.

4.Four-wheel drive, stable and reliable.

5.Save 50% space and civil investment compared to traditional dryers.

6.Innovative flights design. Efficient flights combination would bring better process control , thermal distribution, and heat efficiency. The temperature of exhaust gas is lower than 50℃.

7.Convenient variable frequency-control systems. Customers could change the material flow rate and product moisture based on their needs.

8.Environmental and safe. Modular configuration of dust collection and purification systems .

9.More choice for innovative air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.

Parameter

MODEL	CAPACITY (t/h)	SLOPE (%)	GEARBOX	MOTOR	POWER (kW)
Φ1.0×10m	1-2	5	ZQ400	YCT200-4B	7.5
Φ1.2×12m	2-3	5	ZQ500	YCT225-4A	11
Φ1.5×15m	3-5	5	ZQ500	YCT225-4B	15
Φ1.8×18m	4-6	4	ZQ750	YCT250-4B	22
Φ2.0×20m	7-9	3.5	ZQ750	YCT280-4A	30
Φ2.2×22m	8-10	3.5	ZQ850	YCT315-4A	37
Φ2.4×24m	12-15	3.5	ZQ850	YCT315-4B	45
Φ2.8×28m	16-22	3.5	ZS145	YCT355-4A	55
Φ3.0×30m	20-25	3.5	ZS165	YCT355-4B	75
Φ3.2×32m	28-32	3.5	ZL130	YCT355-4C	90
Φ3.6×36m	38-40	3.5	ZL130	YVF2-315L2-6	132
