Introduction

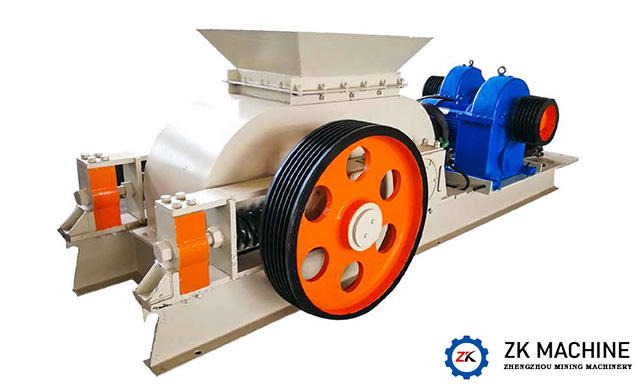

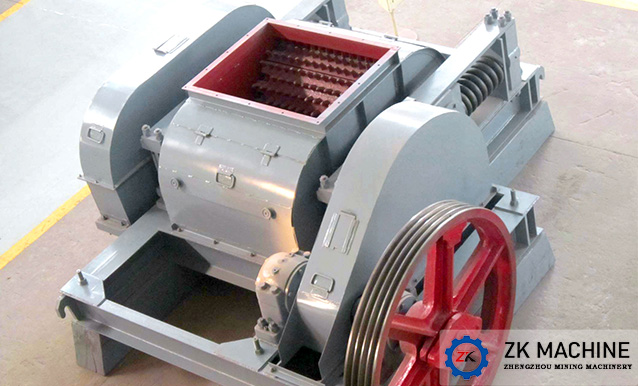

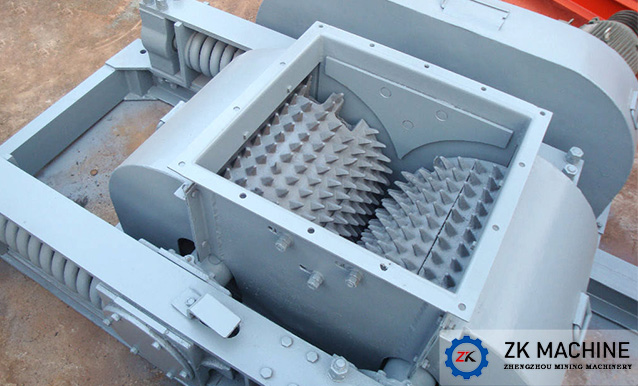

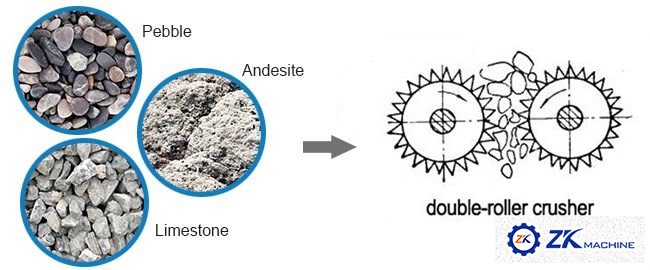

Double Roll crusher is mainly used for secondary and fine crushing to materials below middle hardness, such as coking coal, clinker mineral, limestone, metallic and nonmetallic ore. Roll crusher is available for ore dressing, chemical, cement, refractories, abrasive, building materials industries, finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh,especially in the building materials industry to produce melon meters stone and green bean products etc, and have the more excellent effect than general stave machinery , in recent years, also widely used in crushing steel grit industries.
Application of double roller crusher:
This series roller crusher is a crushing machine researched and manufactured by our company for coarse crushing. The roll crusher is widely used for crushing high hard and medium hard materials in such industrial departments such as metallurgy, building material and refractory. It has the features of low noise, little powder dust, reliable performance and convenient maintenance.
Features
1.It's available for ore dressing, chemical, cement, refractories, abrasive, building materials industries;
2.Roll crusher has the more excellent effect than general stave machinery;
3.Finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh;
4.Roller crusher is stable operation, easy maintenance, low cost, output size adjustable.
Parameter
|
Certification and type |
Roller diameter
(mm) |
Roller length
(mm) |
Max.feed lump size
(mm) |
Size marker
(mm) |
Capacity
(t/h) |
Motor power
(kw) |
Weight
(kg) |
Overall dimension
(mm) |
|
2PGC450*500 |
450 |
500 |
200-500 |
25-125 |
30-60 |
11 |
3800 |
2260*2200*766 |
|
2PGC600*750 |
600 |
750 |
300-600 |
30-150 |
60-100 |
22 |
7200 |
2780*3065*1310 |
|
2PGC600*900 |
600 |
900 |
300-600 |
30-150 |
80-120 |
37 |
7800 |
4500*1900*1350 |
|
2PGC800*1050 |
800 |
1050 |
500-800 |
30-150 |
100-160 |
45 |
12600 |
2550*2050*1100 |
|
2PGC900*900 |
900 |
900 |
600-900 |
30-200 |
150-200 |
45 |
13500 |
2780*4100*1550 |
|
2PGC1015*760 |
1015 |
760 |
700-950 |
30-200 |
150-200 |
90 |
18800 |
7800*3200*1980 |
|
2PGC1200*1500 |
1200 |
1500 |
800-1050 |
30-200 |
200-300 |
110 |
5200 |
8010*4500*2050 |
