GZ Vibrating Feeder

GZ Vibrating Feeder

Model: GZ1 -- GZ9



Capacity: 5 - 840 (t/h)



Max feed size: 50 - 350 (mm)



Application: Quarry, Chemical, Metallurgy, Mine Industry, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Leave a Message
Chat Online

Introduction

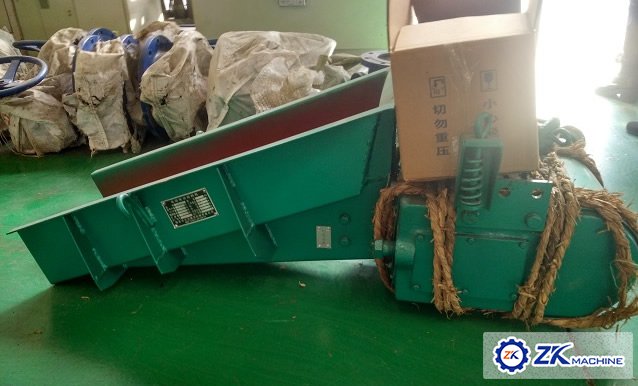

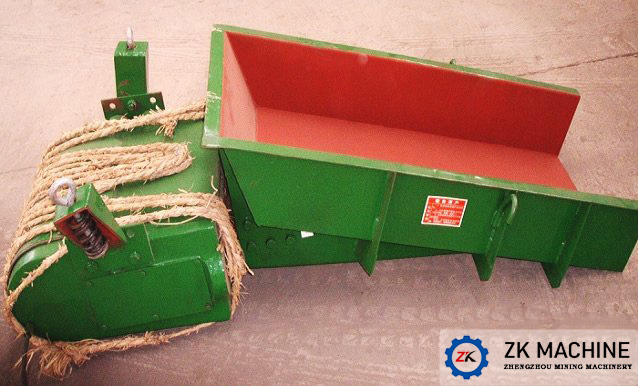

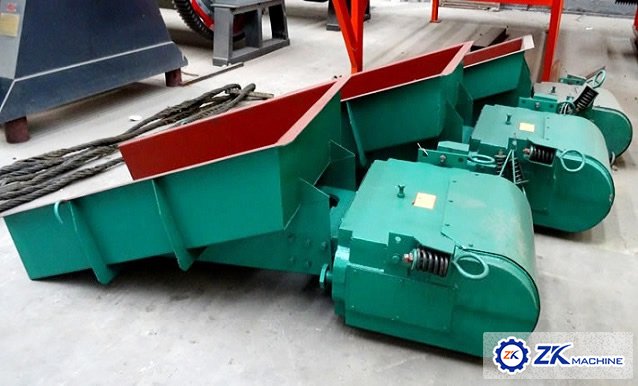

GZ Electromagnetic Vibrating Feeder is mainly used for evenly, continuous and quantitative feeding for lump type, particle type and powder type materials, which is from storage silo and other storage equipment to receiving device with automatic feeding volume adjustment control. The series of feeder have the features like simple structure, easy operation, no need lubrication, low energy consumption and homogenous feeding volume.

GZ Electromagnetic Vibrating Feeder can be applied to various type (particle type, powder type) materials’ feeding on Mine, Metallurgy, Construction, Light industry, Chemical, Electricity, Machine and Grain industry.


Features

1. Advanced vibration mechanism with low energy consumption because of working on low critical near resonance state;

2. Adopt Silicon controlled rectifier half-wave rectifier control method, when operating, automatic control can be realized by adjust the development angle of silicon controlled.

3. Due to the instantaneous change or opening and closing for material flow, the feeding volume with high accuracy.

4. When operating, material will been throw up continuous, then jumping forward with parabolic trajectory, so that have less abrasion to screen cell.

5. Widely application, alloy screen cell feeder can used for conveying wear and corrosive materials, sealing structure feeder can used for high pollution and easy to dust material.

6. Feeder with features like small overall size, light weight, simple structure, no need lubrication and easy to maintenance.

Parameter

Model

Capacity (t/h)

Max feed size (mm)

Motor power (kW)

Weight (kg)

-10°

GZ1

5

7

50

0.06

73

GZ2

10

14

50

0.15

146

GZ3

25

35

75

0.2

217

GZ4

50

70

100

0.45

412

GZ5

100

140

150

0.65

656

GZ6

150

210

200

1.5

1252

GZ7

250

350

250

3

1920

GZ8

400

560

300

4

3040

GZ9

600

840

350

5.5

3750
