Thailand Ceramic Ball Mill & Lab Rotary Kiln Project
Date:2024-03-28 10:37:31
Author:admin
Views:
155
Region: Thailand
Signing date: December 2023
Product Name: Ceramic ball mill and lab rotary kiln
Processing capacity: 300kg/h
Equipment configuration: 1 unit φ750×1800mm ceramic ball mill and 2 sets φ0.529×4m lab rotary kiln and matched LPG burner and thermocouple
Material: Water quenched glass sheet
1. Project Overview:
The customer is a large sensor component manufacturer in Thailand, and the required equipment is for producing sensors raw materials. The customer's request is to calcine the water quenched glass at 500 ℃ and grind it to 200 mesh. During the calcination and grinding process, there should be no mixing of mechanical iron. The initial particle size of the customer's water quenched glass is 10-20mm, and the fuel used for calcination is LPG. After grinding to 200 mesh, it enters the next airflow grinding process.
2. Solution:
According to the customer's demands, our engineers have chosen φ0.529×4m lab rotary kiln and φ750x1800mm ceramic ball mill.
The internal masonry of the experimental kiln is made of mullite casting material, which not only meets the purpose of customer calcination, but also ensures that there will be no mechanical iron coming. The lab rotary kiln uses a variable frequency speed control motor, which can adjust the speed within the range of 1-10rpm. At the same time, the inclination angle of the kiln can be adjusted within the range of 3-10%. Taking these two characteristics into account, it can meet the production capacity requirements of customers. The lab rotary kiln is equipped with a LPG burner, which can directly burn the vaporized LPG from customers to calcine materials. At the same time, thermocouples are installed at the kiln inlet, kiln middle, and kiln outlet to monitor the temperature of various parts inside the kiln in real time, ensuring safe calcination of materials.

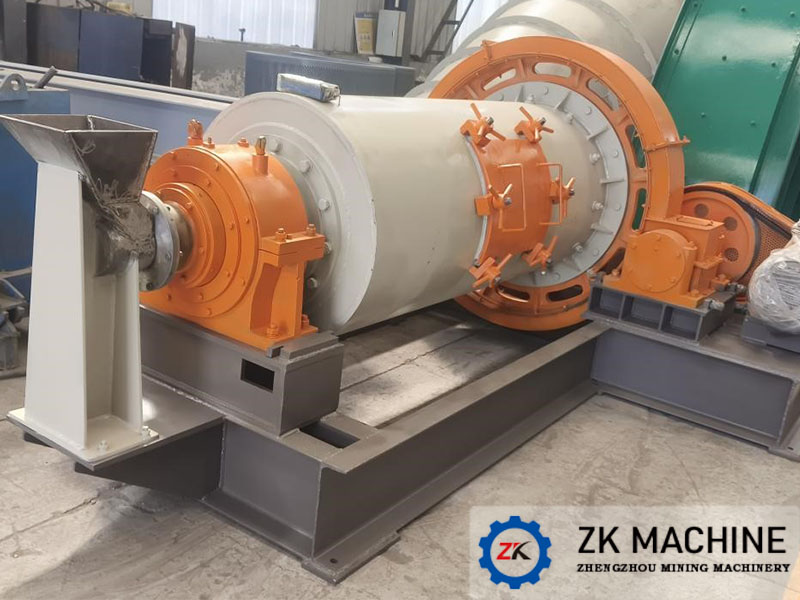

The ceramic ball mill adopts a ceramic lining and ceramic balls with Al2O3 ≥ 95%, which ensures that there is no mechanical iron coming and also makes the equipment more durable.
This model of lab rotary kiln and ceramic ball mill can perfectly match the customer's requirements. At present, the equipment has been completed and shipped smoothly. We will continue to follow up on the usage of equipment by customers to ensure their safe and smooth use.
