Advantages of ZK Corp Disc Granulator
Date:2022-12-17 14:32:49
Author:admin
Views:
146

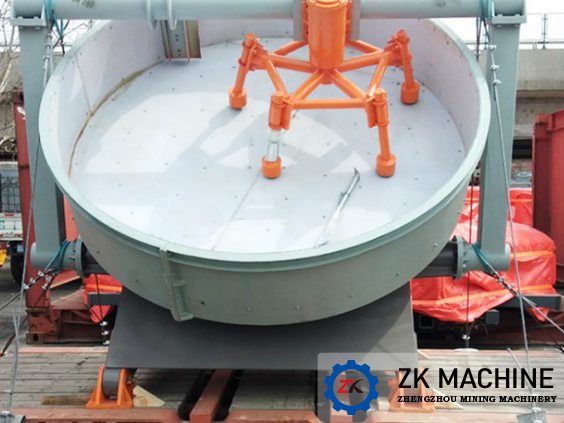

Disc granulator is one of the granulation equipment produced by our company, which can process many materials and is currently used in many industries.
Its disc is provided with three discharge ports, which is convenient for intermittent production operations, greatly reduces labor intensity and improves labor efficiency. The reducer and the motor are driven by flexible belts, which can start smoothly, reduce the impact force and improve the service life of the equipment. The bottom of the disc is reinforced with multiple radiating steel plates, which is durable and not deformed. It has thickened, weighted, sturdy base design. Generally speaking, the factors that affect granulation are: the diameter of the disc, the inclination angle, the side height, the rotational speed, the position of the liquid spray, and the position of the scraper. More attention should be paid to these aspects during production.
The working principle of the equipment: the powder fed into the inclined disc from the feeding pipe will bond with the droplets sprayed by the material liquid sprayer to form small particle groups. Gravity and centrifugal force generated during the rotation of the inclined disc make the small particle group continuously roll and adhere to the lower edge of the disc, making the particles continue to grow larger. At the same time, under the action of the frictional force at the bottom of the disc, the particles move up with the disc. When reaching the scraper, the granulated powder passes through the gap between the scraper and the disc, while some particles follow the direction of the scraper. Scroll to the edge of the disc, continue to roll the adhesive powder, and after several cycles from small to large, finished particles will overflow along the edge of the disc.
Advantages of ZK Corp Disc Granulator:
1. It has a good grading effect, and can control the spraying of the solution on the fine particles, with a high spheroidization rate and fewer large particles.
2. The operation is simple and convenient, and can be adjusted in time according to the granulation situation during the operation.
3. Flexible and controllable, with a wide range of particle size control.
4. Less investment, not occupying too much capital, and quick return.
