Ball Mill Equipment for Estonia
Date:2022-11-26 13:50:12
Author:admin
Views:
211
Contract date: December 06, 2021
Feeding materials: Construction sand
Capacity: 15~20kg/batch

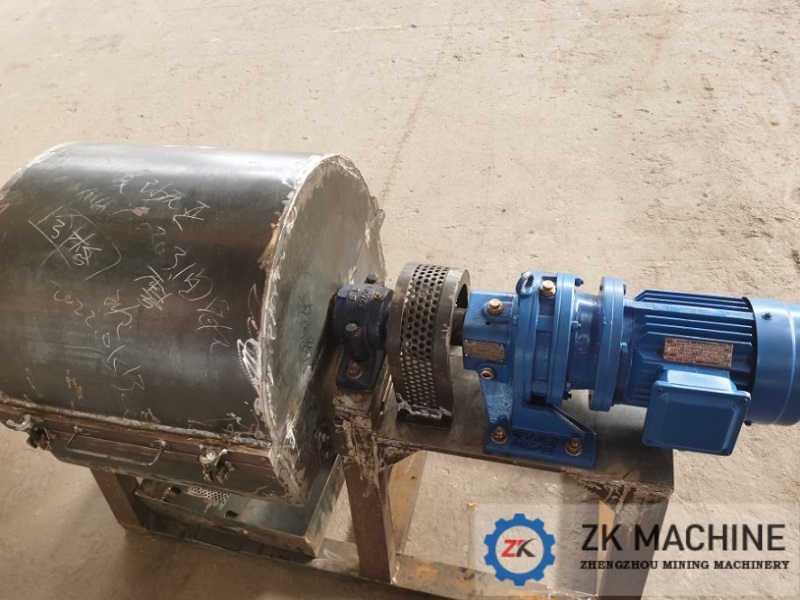

Equipment: φ305*350mm lab ball mill / batch ball mill
1. Project information
The client was coming from Estonia, looking for laboratory scale ball mill for grinding sand for AAC (aerated autoclaved concrete) material development. Capacity:<20kg/. It will be used for grinding sand for building material research project.
2. Technical Solution
According to the basic needs of customers, the process engineers communicate and recommend our mature laboratory ball mill equipment: φ305*350mm intermittent ball mill and φ 600*700mm continuous ball mill, and submit detailed technical and commercial quotations and general drawings to customers for selection, and provide equipment photos and operation videos to customers for reference and understanding.
After comparing the technical parameters and prices, the customer selected φ 305*350mm intermittent ball mill, and then both parties confirmed the CE certification of the transmission device of the equipment.
Finally, the contract will be signed by both parties in December 2021 and the goods will be delivered in January 2022.
3. Equipment Technical Specification
|
No. |
Performance parameters |
Unit |
Data or Specification |
Remark |
|
1 |
Effective diameter |
mm |
305 |
|
|
2 |
Effective length |
mm |
350 |
|
|
3 |
Type |
|
Dry & Batch feeding |
|
|
4 |
Chamber qty. |
Qty. |
1 |
|
|
5 |
Rotation speed |
r/min |
60.9 |
|
|
6 |
Feeding materials |
|
Construction sand |
|
|
7 |
Grinding media qty.
(steel forging) |
kg |
42 |
|
|
8 |
Feeding capacity |
kg/ |
15-20 |
|
|
9 |
Feeding sizes |
mm |
＜10 |
|
|
10 |
Discharging sizes |
|
As per demand |
|
|
11 |
Motor |
Model |
|
YE3-90S-4 |
CE certificate |
|
Voltage |
V |
400 |
|
|
Frequency |
Hz |
50 |
|
|
Power |
kW |
1.1 |
|
|
12 |
Gearbox |
Model |
|
BWD1-23-1.1 |
|
|
Transmission ratio |
|
23 |
|
