The Pilot Project of Preparing Silicon Fertilizer from White
Date:2022-11-15 16:51:59
Author:admin
Views:
87
1. Project overview:
Pilot test address: Henan Zhengzhou Mining Machinery Co., Ltd.
Pilot unit: a research institute in Beijing
Product Name: Silicon Fertilizer
Pilot scale: 3 tons of silicon fertilizer production line per day
Scope of services: One-stop technology service from storage and transportation of raw materials, drying, milling, batching, mixing, granulation, calcination, cooling to storage and transportation of finished products, dust collection, electrical automation control and pilot data recording, etc.
2. Project description:
A research institute in Beijing is affiliated to the National Energy Group and was established in December 2009. It is a national innovation and entrepreneurship base for overseas high-level talents. This pilot project mainly focuses on the cleaning and recycling of fly ash.
3. Pilot test process:
The main raw material for the pilot test: fly ash.
Pilot product: high-efficiency citric acid-soluble fertilizer with effective silicon content ≧ 30%.
Pilot test process: raw material drying → grinding → batching → granulation → screening → calcination → cooling → screening → packaging.
4. The main equipment for the pilot test service:
|
Serial Number |
Section |
Device model |
technical parameter |
Remark |
|
1 |
calcine |
Rotary Kiln |
Φ0.8×15m |
Equipped with experienced technicians, real-time control to minimize particle breakage, adhesion, under-burning or over-burning |
|
Firing temperature/residence time |
800-1400℃/1.5~3h |
|
Liner material |
Resistant to 1400 ℃ alkaline corrosion, non-stick material, no slag |
|
Rotary Cooler |
Φ0.6×5.5m |
|
Dust collector system |
Single pulse dust collector
ZM-80 |
|
2 |
Grinding |
Ball Mill
Φ0.9×2.1m |
Feed particle size <25mm,Discharge particle size <200 Mesh（100%）；Production capacity ≥1.5 t/h；Material loss <1% |
Equipped with ADW6301 eddy current superfine classifier |
|
3 |
Mixing and granulation |
ZKZL-15 |
Production capacity ≥3-5 t/h; discharge particle size is adjustable from 3-5mm, particle compressive strength ≥12N (reference value); material loss <1% |
The material is stirred at high speed, and the powdery material is nucleated by "kneading" during the high-speed movement, and then granulated into a ball. |
|
4 |
sieve |
LXS Vibrating Screening Filter |
Screening capacity≥5-10m³/h; material loss <1% |
|
5. Pilot equipments:
ZK Φ 0.9m×2.1m Ball Mill
ZK1.5M High Efficiency Granulator

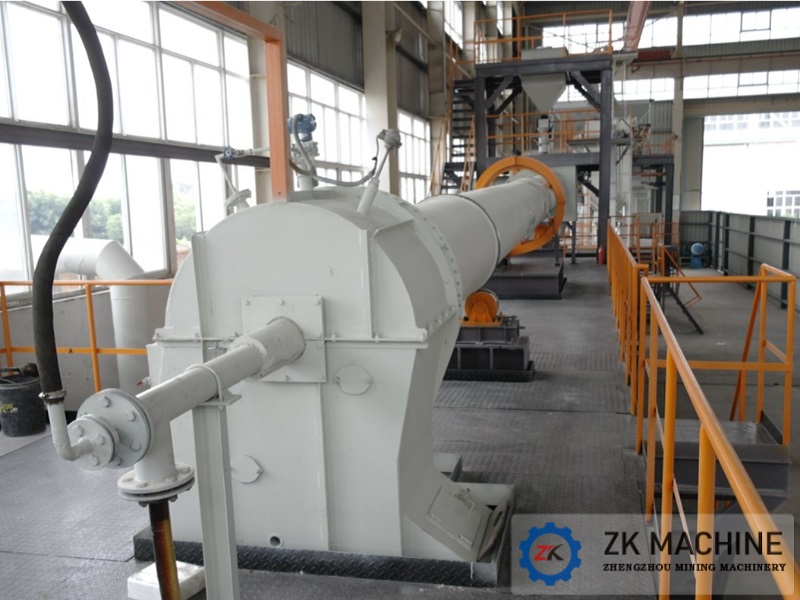

Φ 800×15m rotary kiln
Sample calcined in rotary kiln
Screen 2-3mm pellets after calcination
