Argentina Hammer Crusher Project
Date:2022-11-12 15:42:49
Author:admin
Views:
181
1. Project Overview
Equipment Name: Hammer Crusher
Equipment Model: PC400×300
Raw Material: waste of marble, granite and quartz
Capacity: 5-8tph
Signing Time: July 2022
Signing Country: Argentina
2. Project Description
An Argentine customer needs to purchase 1 crusher for crushing waste from marble, granite and quartz. The finished product is used as gravel, concrete and garden decoration. In March 2022, customer contacted with our company through Google. After communicating with our foreign trade personnel to learn more about the performance characteristics of the equipment, such as the capacity of the equipment, the particle size of inlet and outlet, and the structure, the customer ordered a hammer crusher PC400×300 for production. Sign a purchase contract with our company in July 2022, the contract took effect in August 2022, and the equipment was shipped in October 2022.
3. Solutions
The supply of this time is 1 hammer crusher, and the following solutions are mainly adopted to meet customer needs:
3.1 According to the customer's material particle size range, select suitable equipment, and combine the material particle size and transportation distance to reasonably arrange the process layout.
3.2 The working hammer is large, and it is cast by new technology. It has wear resistance and impact resistance. The required particle size can be adjusted according to customer requirements. At the same time, the body structure is sealed, which solves the dust pollution and ash leakage problems in the crushing workshop.
3.3 The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
4. Technical Parameter
|
No. |
Name |
Unit |
Parameter |
|
1 |
Spec. |
|
PC400×300 |
|
2 |
Dia. of Rotor |
mm |
φ400 |
|
3 |
Length of Rotor |
mm |
300 |
|
4 |
Rev. Speed of Rotor |
r/min |
1100 |
|
5 |
No. of Hammer |
Pcs |
20 |
|
6 |
Raw Material |
|
waste of marble, granite and quartz |
|
7 |
Feeding Size |
mm |
＜200 |
|
8 |
Discharging Size |
mm |
＜25 |
|
9 |
Capacity |
t/h |
5-8 |
|
10 |
Motor |
Model |
|
YE3-160M-4，380V，50Hz |
|
Power |
kW |
11 |
|
11 |
Weight |
t |
0.82 |

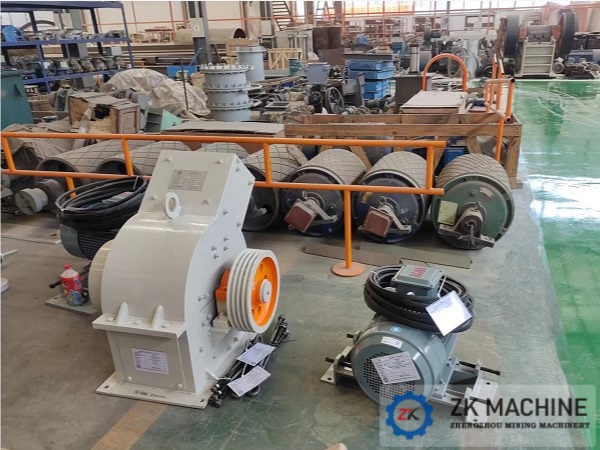

5. Delivery Pictures
