Brief introduction of double shaft mixer
Date:2022-05-13 09:47:54
Author:admin
Views:
154
In recent years, Henan Zhengzhou Mining Machinery Co., Ltd. has been committed to the development of the ceramsite industry, and has continuously developed, designed and upgraded new equipment for the ceramsite industry. A twin shaft mixer is a good example.
The original two-shaft mixer was used in the brick and tile industry to mix the clay. During the mixing process, water was sprayed to mix the clay evenly for subsequent brick making.
In recent years, Henan Zhengzhou Mining Machinery Co., Ltd. has improved and upgraded the traditional two-shaft mixer, and improved the form of the shaft, the transmission method, and the combination of the blade and the shaft to a certain extent. The double-shaft mixer has more functions, and the machine that was originally only used in the brick and tile industry has a new mission.
At present, the twin-shaft mixer produced by Henan Zhengzhou Mining Machinery Co., Ltd. is mainly used for mixing powder or materials with smaller particles.

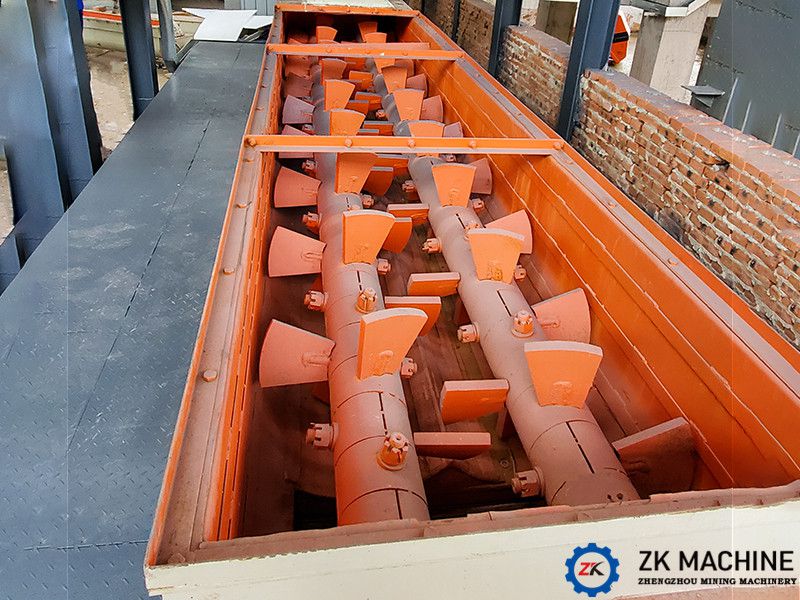

The double shaft mixer is driven by the motor to drive the reducer, and the reducer drives the two shafts to rotate, and uses the spiral blades on the shaft to stir and transport the materials. It can be used for stirring and pulverizing clay materials in the ceramsite industry; evenly stirring and mixing raw materials such as fly ash, aggregates, additives, etc.
It can be designed as a full-time structure, with high stirring efficiency, compact structure, stable operation, clean and environmental protection, can effectively avoid dust, improve working conditions and environment, and meet environmental protection requirements.
The outstanding advantages of this model of twin shaft mixer:
1. The whole mixing and conveying process is carried out in a sealed space, no dust leakage, clean and environmentally friendly;
2. It integrates mixing, humidification and conveying, with good mixing uniformity, high production efficiency and large production capacity;
3. The stirring blade is made of wear-resistant material and has high wear resistance after special surface treatment;
4. The whole machine has compact structure, small occupied space, stable transmission, high reliability and low noise.
5. The hydraulic coupling can be used for transmission between the reducer and the shaft, which can effectively protect the motor and the reducer when the sundries enter the machine and the blades are stuck.
6. There is a layer of wear-resistant bearing bush on the outer side of the stirring shaft, which can effectively avoid the wear of the shaft and prolong the service life of the double shaft;
7. The stirring blade and shaft are non-welded, bolted, and the blade is more convenient to disassemble and replace, and the maintenance cost is lower.
