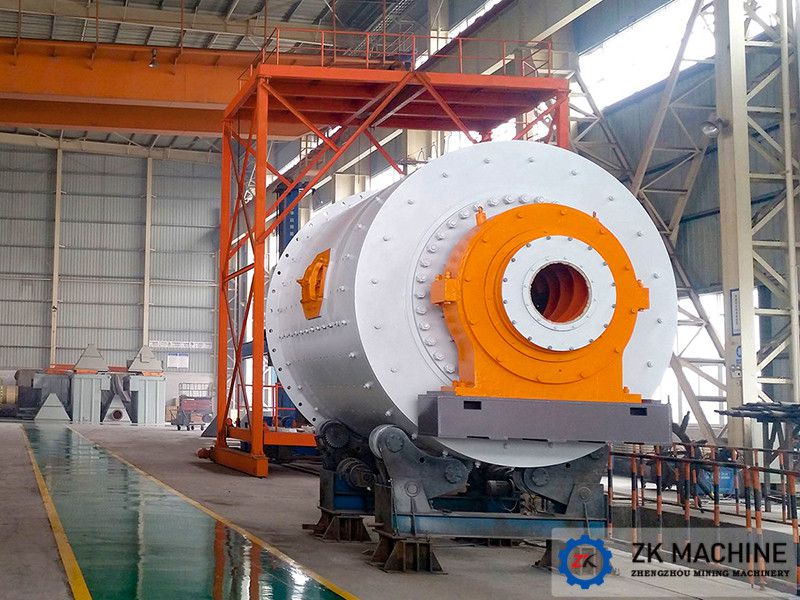

Brief Introduction of Ferrosilicon Mill
Date:2021-02-26 16:13:31
Author:admin
Views:
155
Ferrosilicon mill has the advantage of compact structure, small area needed, easy installation, good ground partical size, low energy consumption, low noise, big production capacity, easy adjustment on the fineness, no dust pollution, easy maintenance and reliable running.
Especially it is used in Silicon smelting magnesium process. Crushing the big rigidity ferrosilicon from 25-40mm to 3-5 mm. Meanwhile, the equipment is also widely used in metallurgical industry, construction industry, land making industry and chemical industry. It is suitable for hardness and middle hardness mineral ore such as iron ore, copper ore, limestone, quartz, granite, sandstone and etc. It will provide perfect material shape outlet. The equipment can meet customer’s various technical and economical indicator and reach international advanced level.
Working Principle of Ferrosilicon Mill
Ferrosilicon Mill Material is fed into the crusher from inlet port. The material is carried by distributing device. Distributing device make rotational motion with the feeding plate as reference object and put the material into the crushing chamber evenly. The dynamic cone equipped with dynamic toothed plate make rotational motion with the outer cone equipped with static toothed plate as reference object. Material is cut in the crushing chamber shaped between dynamic cone and static cone to fulfill crushing. The crushed material is discharged.
|
SPEC |
Rev (r/min) |
Feeding Size(mm) |
Output Size(mm) |
Capacity
(t/h) |
Power (kW) |
Weight
(ton) |
|
ZKGM-1250 |
27.3 |
≤40 |
≤6 |
5-6 |
18.5 |
8.1 |
|
ZKGM-1650 |
24.15 |
≤40 |
≤6 |
7-9 |
30 |
11.6 |
|
ZKGM-1850 |
21.8 |
≤40 |
≤6 |
9-11 |
37 |
14.5 |
|
ZKGM-2050 |
20.4 |
≤40 |
≤6 |
10-13 |
45 |
18.2 |
|
ZKGM-2250 |
18.75 |
≤40 |
≤6 |
12-16 |
55 |
22.7 |
