What are the characteristics and advantages of ZSW vibration
Date:2020-04-24 11:41:43
Author:admin
Views:
208

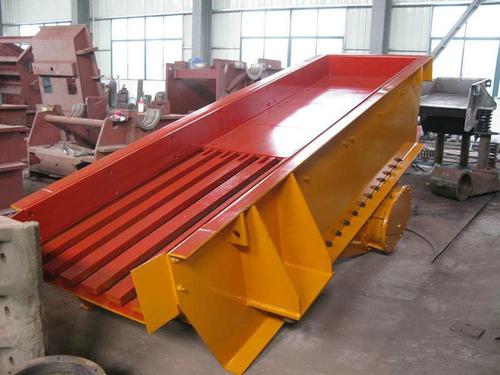

The ZSW series vibrating feeder produced by Henan Zhengzhou Mining Machinery Co., Ltd. is a linear vibrating feeder, which can send blocky and granular materials to the receiving device evenly, regularly and continuously. When feeding continuously and evenly for crushing machinery, the material can be coarsely screened to improve the crushing efficiency. This type of equipment has the characteristics of stable vibration, reliable operation and long life. It is widely used in the crushing and screening equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemical industry, and abrasives.
Advantages of ZSW vibration feeder:
1. Linear motion trajectory, stable vibration, to ensure the fluidity of the shocked material, reduce channel clogging, flushing phenomenon;
2. The material has strong adaptability and can work in dusty or watery environments;
3. The special grid design can prevent material from being blocked, and the gap of the grid can be adjusted;
4. Reliable work, low energy consumption, less wearing parts, long life, convenient maintenance;
5. Large conveying capacity and high efficiency, optional variable frequency speed regulating motor, easy to adjust the feeding amount;
6. Low noise and no pollution, can adopt a closed structure body to prevent dust pollution.
Working principle of ZSW vibration feeder:
The excitation source of the ZSW series vibrating feeder is two eccentric shafts (active and passive); when the motor drives the driving shaft to rotate through the V-belt, the driving shaft drives the passive shaft to rotate through gear engagement, and the active shaft and the passive shaft rotate synchronously and reversely, to make periodic vibration of the tank; After the material is added, under the action of the exciting force, the material continuously moves forward during the sliding and throwing movement on the trough, and finally the feeding process is completed; When the material passes through the screen strip on the trough, the smaller material directly falls through the gap between the screen strips, that is, while conveying the material, the preliminary screening is completed.
Henan Zhengzhou Mining Machinery Co., Ltd. specializes in the research and development and production of mining equipment, construction equipment and mineral processing equipment. Welcome to visit the factory and negotiate business.
