Ceramsite Sorting Machine
Date:2020-04-23 09:37:56
Author:admin
Views:
218
The building materials industry is an important material industry in China. As one of the building materials, ceramsite is also called light aggregate, that is, ceramic particles, which have the advantages of low density, corrosion resistance, and good frost resistance. They are widely used in construction materials, horticulture, chemical industry, petroleum and other fields. Ceramsite can be used in different occasions according to its strength and particle size. Normally, light ceramsite has the characteristics of low strength; high density and high strength.
In the production process of ceramsite, the ceramsite particle size is classified by rotary sieve according to the particle sizes. For the cases where ceramsites with different specific gravities (the same volume and different weights) are doped together, they also need to be separated. In order to sort ceramsites of different densities or body density, it is necessary to develop corresponding equipment with high selection efficiency and reliable selection. The existing methods are usually manual sorting, which takes a long time, can not continue to operate, and the sorting efficiency is low, can no longer meet the development requirements of ceramsite production.
In order to solve the above problems, our company has developed a sorting machine for ceramsite dedicated to the heavy secondary separation of ceramsite. Using the flotation technology in the material separation technology, the lighter and heavier ceramsite on the same production line are separated to serve subsequent different applications.

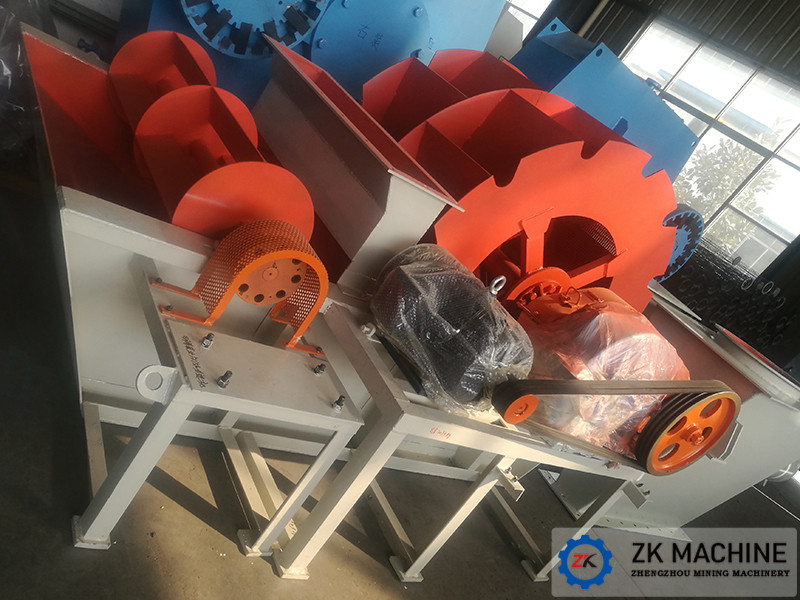

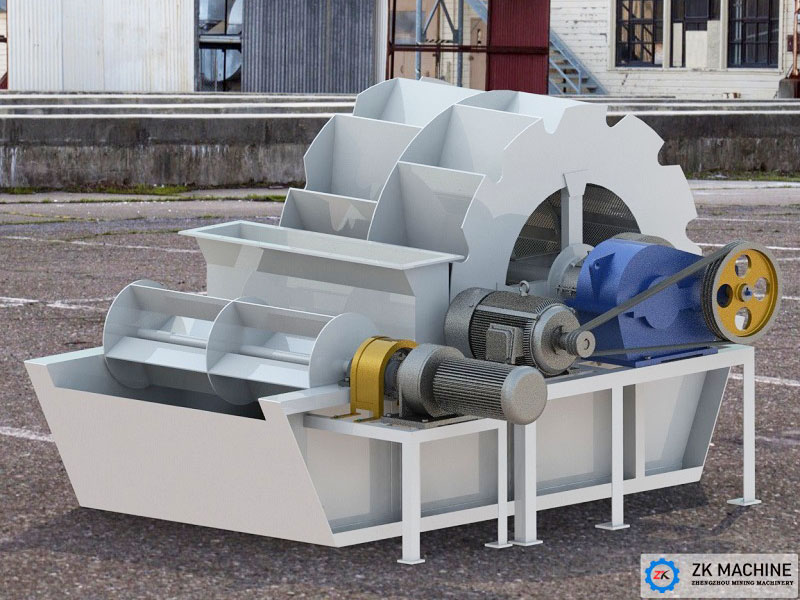

The ceramsite sorting machine is mainly composed of a water tank, an impeller device, a rotating scraper device, and a transmission device.
The ceramsite sorting machine is a continuous sorting device. It has the advantages of simple structure, small footprint, low investment, reliable operation, low operating cost, and simple maintenance. It is widely used in the ceramsite sorting industry.
The water tank is welded by 304 stainless steel plate and profile steel frame, carrying the water medium and ceramsite material for sorting ceramsite, and used as a supporting base for the impeller device and rotating material device.
The impeller device is provided with two rows of buckets, and the bottom of the bucket is welded with a punching screen plate, which is durable, and the water in the bucket is leaked through the screen holes when lifting the material; the impeller is hollow and the high-strength bolts are used to connect the main shaft and the impeller. Easy installation and maintenance.
The rotary scraper is equipped with four blades, and the blade is driven by the cycloid pin wheel reducer to move the light material floating on the water to the side. The speed of the scraper is adjustable, which can be adjusted in real time according to the amount of feed to increase production effectiveness.
Based on innovation, Zhengzhou Mining Machinery Co., Ltd will continue to develop new processes and technologies to provide quality services to our customers. At the same time, if you want to know more equipment information, please consult the customer service of ZK Corp online or call us, we will serve you wholeheartedly!
