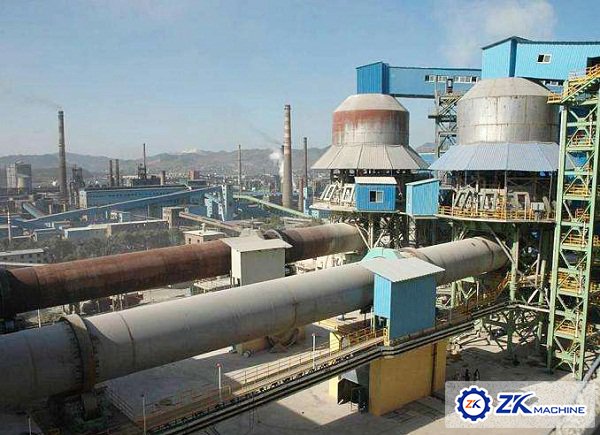

Features of lime rotary kiln technology

The lime rotary kiln has advanced structure, and the low-pressure loss vertical preheater can effectively improve the preheating effect. The preheated limestone can enter the kiln with a decomposition rate of 20-25%, and can directly use 10-15mm fine-grained limestone;
Lime rotary kiln reliable combined scale seal at both ends of rotary kiln. Make the air leakage coefficient less than 10% using composite refractories to reduce radiant heat loss;
The lime rotary kiln is filled with circular or square vertical coolers that can be partitioned and ventilated, so that the lime temperature of the cooler is 800 ° C + ambient temperature.The secondary air entering the kiln can be preheated to more than 7000 ℃, reducing moving parts and special materials.

The design of the lime rotary kiln should meet the following requirements:
1. The specifications of the lime rotary kiln should be comprehensively determined according to the requirements for the output of the firing system, combined with raw materials, fuel conditions, and the configuration of the preheater, decomposition furnace, and cooler.
2. The length-diameter ratio (L / D) of the preheater kiln and the precalciner kiln should be 11-16.
3. The slope of the preheater kiln and the precalciner kiln should be 3.5% -4%; the highest speed: the precalciner kiln should be 3.0-3.5r / min, and the preheater kiln should be 2.0-2.5r / min; speed range 1:10.
4. Forced air cooling should be adopted for the cooling of the lime rotary kiln with a barrel.
5. The lime rotary kiln firing zone should have the cylinder temperature detection measures.
6. The main motor of the lime rotary kiln should adopt a stepless variable speed motor, and an auxiliary drive should be provided. The auxiliary drive should have a backup power source.
