80TPD Silica Sand Grinding Project in Kuwait

Ⅰ Project Description:

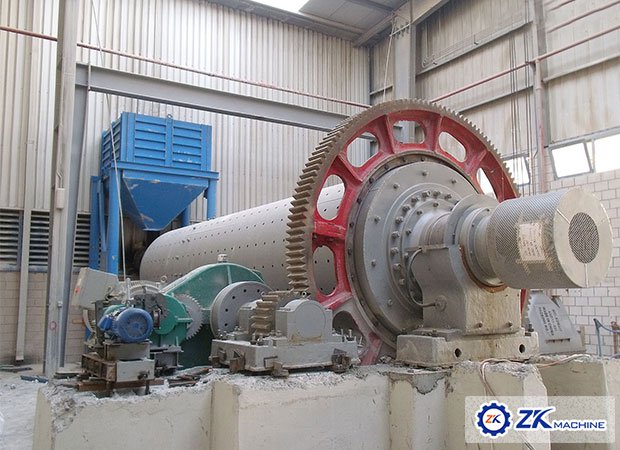

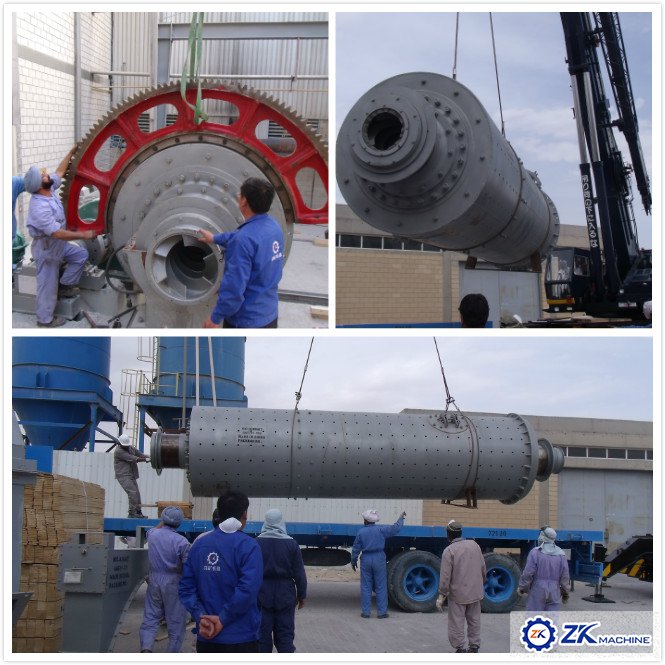

ZK Corp builds a silica sand grinding station with capacity of 80 tons per day in Kuwait. The project adopt the open circuit production technology to produce the raw material for bricks. The main grinding equipment is ball mill. It has the feature of low investment, short construction period, easy operation and control, high reliable and durable, and high running rate. The final ground sand has the features of good shape and proper size distribution. In the grinding process, ball mill technology has occupied the leading position in the industry. When machine selection, we have considered the high temperature environment effective on the mechanical and electrical equipment.
Ⅱ Main Equipment:
Ball Mill Model Φ1830x7000
Production Capacity 6-8t/h
Feeding Size ≤25mm
Output Size 0.074-0.4mm

Electromagnetic Vibration Feeder GZ3
Capacity 25 t/h
Feeding Size 75 mm
Double-amplitude 1.75 mm

Belt Conveyor Model B500x19.5m 20°
Capacity 87 t/h
Speed 1 m/s
Power 7.5 kW

Bag Filter Model ZM200
Filtration Area 200 M²
Air Volume 12000-14400M³/h
Bag Quantity 200

Screw Conveyor Model GX 300x3m
Diameter 300mm
Length 3000mm
Power 2.2 kW

Bucket Elevator TH315X8.5m
Capacity 28M³/h
Bucket Volume 6L
Bucket Width 315mm
