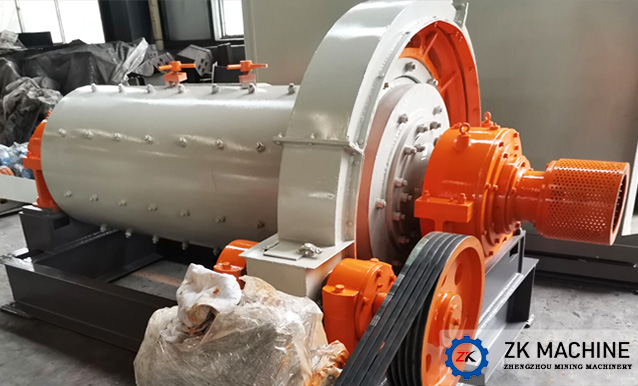

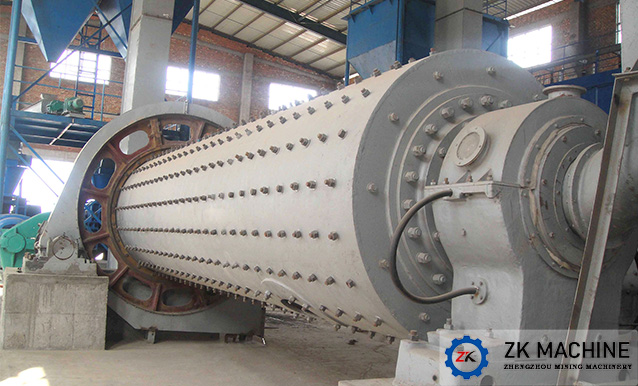

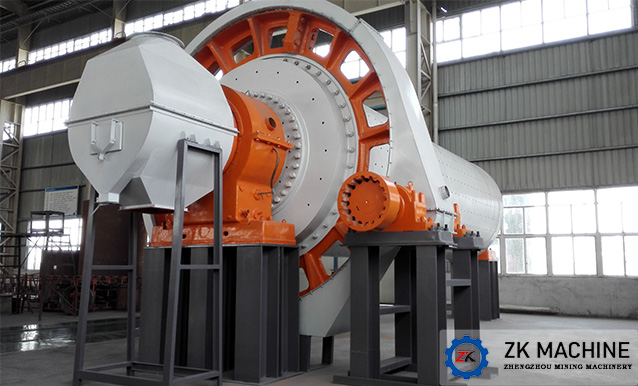

Slag Ball Mill

Type:Dry / Wet, Grid / Overflow



Productivity: 18 - 210 (t/h)



Power: 310 - 3550 (kW)



Application: Ground Granulated Blastfurnace Slag

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

Slag ball mill is the key equipment used for re-grinding the slag after it is pre-crushed. It is mainly applied in the superfine slag powder production industry and cement powder grinding station, chemical and other industries. Grinding ways can be divided into dry and wet these two types. According to different ore discharge ways, it can be divided into grid type and the overflow type.

Working Principle of Slag Ball Mill:
Slag ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Our Service:
Packaging & Delivery


Technical Support

Successful Cases

Features

1.High grinding efficiency and low power consumption.
2.Low metal consumption in unit product.
3.Bed grinding with low noise.
4.Negative pressure and low dust pollution.
5.Small floor space, compact layout, system equipment with light weight and low investment for civil construction.



Parameter

Number

Specification
(m)

Productivity
(t/h)

Rotating  speed of  cylinder
(r/min)

Rotating  mode

Power  (kw)

Reducer

Weight
(t)

Model

Speed  ratio

1

Φ2.2×6.5

18

21.4

Edge

310

ZD70

5

44

2

Φ2.4×8

26-28

20.14

Edge

570

ZD80

6.3

90

3

Φ2.6×13

11-15

19.7

Edge

1000

JDX800

6.3

137

4

Φ2.8×6.5

35

18.65

Edge

630

ZD80

6.3

100

5

Φ2.8×10

45-48

18.65

Center

800

MFY80

37.5

160

6

Φ3×6.5

37

18.58

Edge

800

JD800

5.6

115

7

Φ3×9

40-50

18.58

Edge

1000

JD800B

5.6

132

8

Φ3×12

65-75

18

Center

1400

JS110-B-F1

42.22

202

9

Φ3.2×13

72-75

17.86

Edge

1400

JDX900

6.3

237

10

Φ3.4×7.5

70

16.9

Edge

1000

ZDA-100

6.3

167

11

Φ3.5×10

90

16.8

Center

1250

Js110-A

44.1

154

12

Φ4.6×7.5+3.5

180

15

Center

2500

---

--

272

13

Φ4.6×10.5+3.5

210

---

Center

3550

JQS3550

15.1

360
