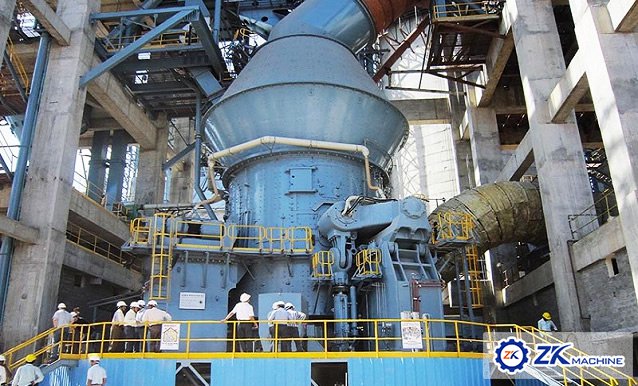

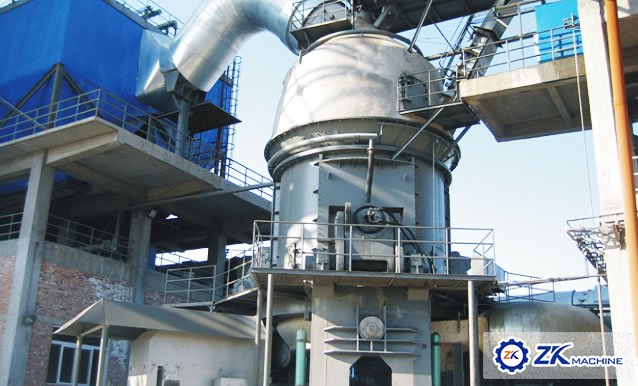

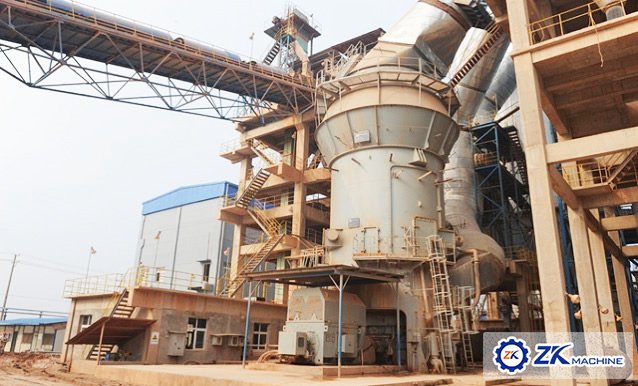

Slag Vertical Mill

Grinding Plate Dia: 1400 - 2700 (mm)



Output: 70 - 660 (t/h)



Applied materials: quartz, feldspar, calcite, limestone, etc.



Application: GGBS Production Line, Cement Production Line

Whatsapp: +86 15237956296
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

HOT PRODUCTS

CONTACT US

E-mail:  mic@zkcorp.com

Whatsapp:+86 15237956296

Introduction

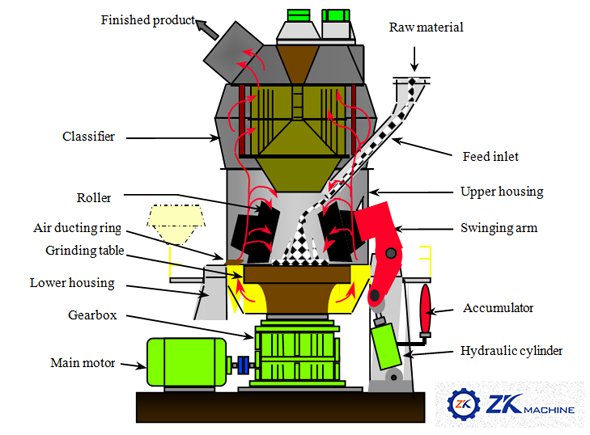

Slag vertical roller mill is the equipment to grind Ground Granulated Blast furnace Slag (GGBS) into small particles. GGBS (fineness:4200-4500cm2/g) produced by vertical roller mills are being used to substitute clinker in conventional cement manufacturing as well as to partially replace OPC for ready-mixed concrete production, for which the percentage of GGBS usage is typically at 10-15% and 20-25% respectively.

Slag vertical roller mill can be used to grind non-inflammable and non-explosive materials with Moh's hardness below 9.3 and moisture content below 6%, Such as: slag, limestone, calcite, barite,dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate,iron ore, quartz, active carbon, coal, ect.

Features

1. Good return on investment
The widely use of slag increases the market demand to slag gradually. In recent years, investment in slag production line has been a new favorite in investment market. One production line can recover the cost in 1-3 years.

2. Reducing the power consumption of slag micro powder preparation effectively.
According to the display of slag powder production measured data, traditional ball mill needs power consumption 75~80kWh for per ton slag micro powder. However, it needs power consumption 42~45 kWh for per ton slag micro powder if adopts advanced vertical roller mill technology, and it can be saving electricity 33~35kWh use of vertical roller mill production per ton slag, and power saving effect is very remarkable.

3. Reducing the environment pollution effectively in the process of slag powder preparation.
Slag powder vertical roller mill adopts the internal negative pressure system to reduce the dust spillover effectively. The equipment adopts advanced technology with low revolving speed, stable operation, low noise, and the noise does not exceed 85dB(A) from the mill 1 meter.

4. Removing iron effectively, increasing additional income.
The advanced technology of slag vertical roller mill can be removed the iron effectively from the slag, and no less than 1% iron content can not only protect the machine, but also can increase additional income.

Parameter

Model Grinding Table Diameter
(mm)
Roller Diameter
(mm)
Roller Number
(n)
Motor
(kW)
Output
(t/h)
GRMR22.30 2200 1400 3 550 70
GRMR26.30 2600 1600 3 790 100
GRMR28.30 2800 1750 3 900 115
GRMR30.30 3000 1700 3 1000 120
GRMR32.30 3200 1500 3 1400 160
GRMR34.30 3400 1500 3 1600 180
GRMR36.41 3600 1600 4 1800 200
GRMR38.41 3800 1700 4 1900 230
GRMR40.41 4000 1800 4 2240 260
GRMR43.41 4300 1900 4 2500 310
GRMR46.41 4600 2060 4 3150 350
GRMR48.41 4800 2240 4 3350 390
GRMR50.41 5000 2360 4 3500 420
GRMR53.41 5300 2500 4 3800 470
GRMR56.41 5600 2600 4 4500 540
GRMR59.61 5900 2600 6 5000 610
GRMR63.61 6300 2700 6 6000 720


Note: mill spectral pattern benchmark

  1. Material medium friction (MF)=0.9~1.0;
  2. Material moisture max 7%;
  3. Refined powder granularity 80μmR 12~15%;
  4. Refined powder moisture 0.5~1.0%;
  5. The concrete mill installed power and technology parameter will be adjusted appropritely basing on the actual material property and requirements of owner;
  6. The above specification also applies to limestone powder mill, and the concrete type selection shall be decided according to material property.
