Ore Grinding Mill

Introduction

Ore vertical mill is also choice for nonflammable and non-explosive minerals of which Mohs hardness is less than 9.3, moisture content is less than 6%, for example: quartz, feldspar, calcite, talcum, barite, fluorite, rare earth, marble, ceramic, aluminous bauxite, manganese ore, iron ore, copper ore, phosphorus rock, red ferric oxide, zircon, slag, granulating slag, cement clinker, active carbon, dolomite, granite, garnet, yellow ferric oxide, fertilizer, multiplex fertilizer, fly ash, soft coal, coking coal, lignite, magnesite, chromium oxide green, gold ore, red clay, clay, kaolin, coal tar creosote, coal slack, porcelain clay, cyanite, fluorspar, bentonite clay, medical stone, rhyolite, greenstone pyrophillite, shale, basalt, gypsum, graphite, etc.

The fineness from the finished product could be adjusted from 100 mesh to 325 mesh according to specific requirements of clients.

Features

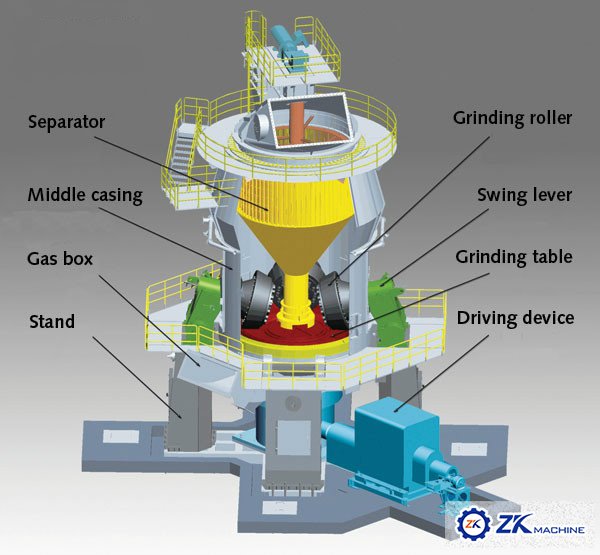

1. Composite separator improves the efficiency of the powder.

2. With the function of automatic lifting and falling , can realize no-load starting.

3. Welded type arc plate is used for sealing, it features simple structure, reliable performance, well-sealed structure.

4. By means of the roller swing-out device, the grinding rollers can be turned out of the mill, which is in favor of maintenance.

5. The limit mechanism avoids the fiction and crash of metals between grinding roller and grinding plate, increasing the rotating stability and security.

6. Operating pressure of hydraulic system is low, can reduce the leakage failure and the mill vibration , is good for operation and management.

7. The centralized circulating oil lubrication is applied to the grinding roller bearings, which ensures the bearing operate at constant temperature and with pure oil, so that longer service life is achieved.

Parameter

Model	Grinding Table Diameter (mm)	Roller Diameter (mm)	Roller Number (n)	Motor (kW)	Output (t/h)
GRMR22.30	2200	1400	3	550	70
GRMR26.30	2600	1600	3	790	100
GRMR28.30	2800	1750	3	900	115
GRMR30.30	3000	1700	3	1000	120
GRMR32.30	3200	1500	3	1400	160
GRMR34.30	3400	1500	3	1600	180
GRMR36.41	3600	1600	4	1800	200
GRMR38.41	3800	1700	4	1900	230
GRMR40.41	4000	1800	4	2240	260
GRMR43.41	4300	1900	4	2500	310
GRMR46.41	4600	2060	4	3150	350
GRMR48.41	4800	2240	4	3350	390
GRMR50.41	5000	2360	4	3500	420
GRMR53.41	5300	2500	4	3800	470
GRMR56.41	5600	2600	4	4500	540
GRMR59.61	5900	2600	6	5000	610
GRMR63.61	6300	2700	6	6000	720

Note: mill spectral pattern benchmark

Material medium friction (MF)=0.9~1.0;
Material moisture max 7%;
Refined powder granularity 80μmR 12~15%;
Refined powder moisture 0.5~1.0%;
The concrete mill installed power and technology parameter will be adjusted appropritely basing on the actual material property and requirements of owner;
The above specification also applies to limestone powder mill, and the concrete type selection shall be decided according to material property.
