LS Screw Conveyor

Model: LS Type



Capacity: 7 - 520 m³/h



Screw Dia.: 200 - 500 mm



Conveying Material: coal powder, coal ash, argil, sand, cement, carbamide, etc.

Whatsapp: +86 18037866379
Send e-mail: mic@zkcorp.com
Get a Quote
Chat Online

Introduction

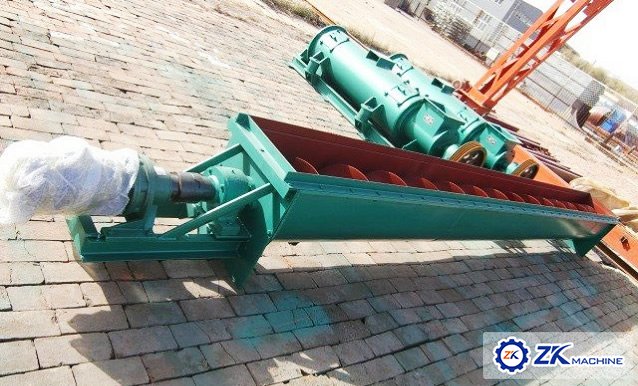

LS screw conveyor is the updated model of the GX type screw conveyor. The whole conveyor is reliable, durable, adaptable, easy to install. It is suitable for conveying the powder, granular, and block materials (temperature <200℃), such as coal powder, coal ash, argil, sand, cement, carbamide etc. The screw conveyor is not only used for the concrete batching plant, bituminous concrete batching, but also for the chemical, building, food, metallurgy and so on.

Features

1. It achieved clean and environmentally friendly production, especially suitable for conveying dusty, hot (under 200 ℃) and sharp odour material.

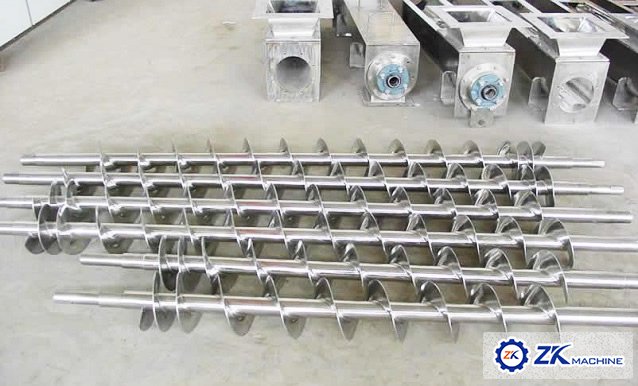

2. The wear treated screw is more wearable and stronger than traditional common screw. It can significantly increase the service life of the screw

3. It can achieve multi-point feeding and multi-point discharging according to user's process layout.

4. The redesigned discharging structure makes the discharging smoother.

5. Compact structure, less wearing parts, convenient to install, operate and maintain.

Parameter

Model

Screw dia
(mm)

Pitch
(mm)

Max Rev.Speed
(r/min)

Capacity
(m³/h)

Conveying Distance
(m)

LS200

200

200

5090

712

215

LS250

250

200

4590

1020

220

LS300

300

300

4080

1530

220

LS400

400

300

3570

2555

225

LS500

500

400

3565

4590

225

Wearing Parts List

No.

Name

Quantity

1

Flight

1

2

Bearing

 2

3

Nylon Pin

8
